ADM DUAL4-M8 - 4″ DUAL Series Saddle. 8mm Counterbored Version

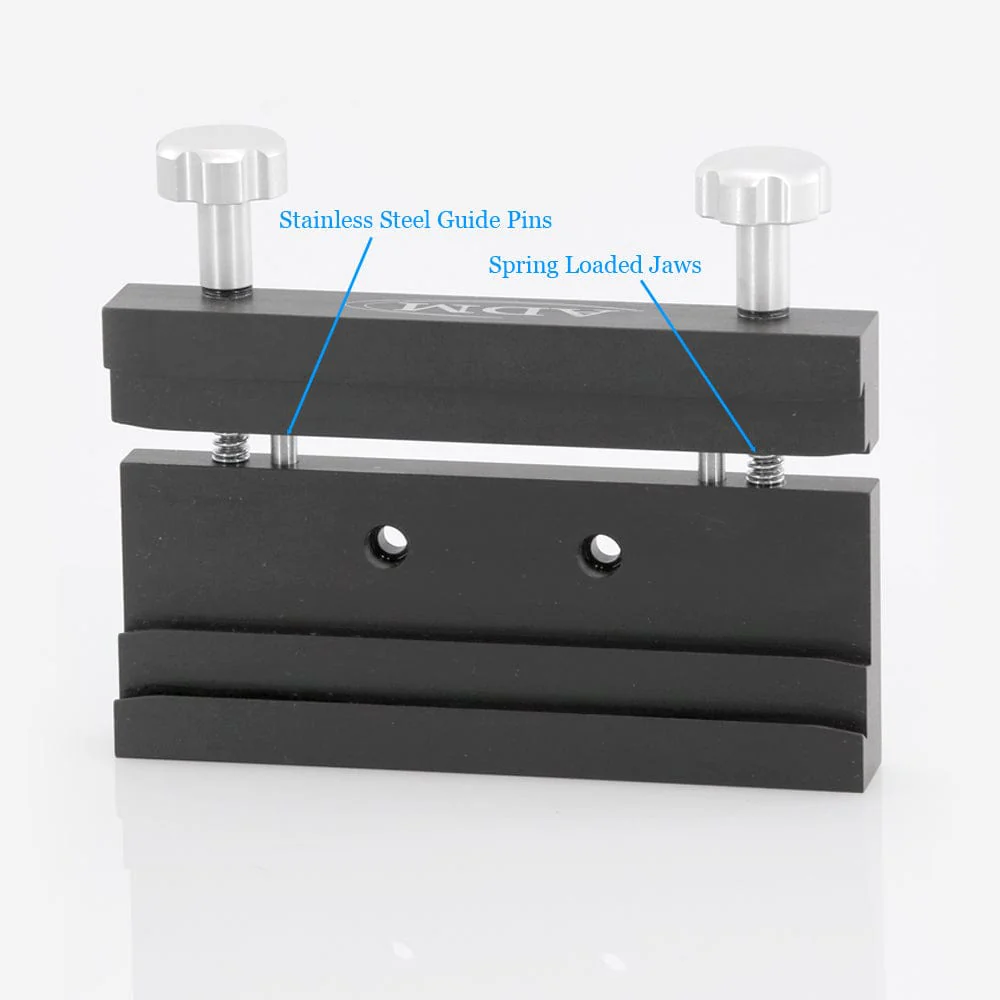

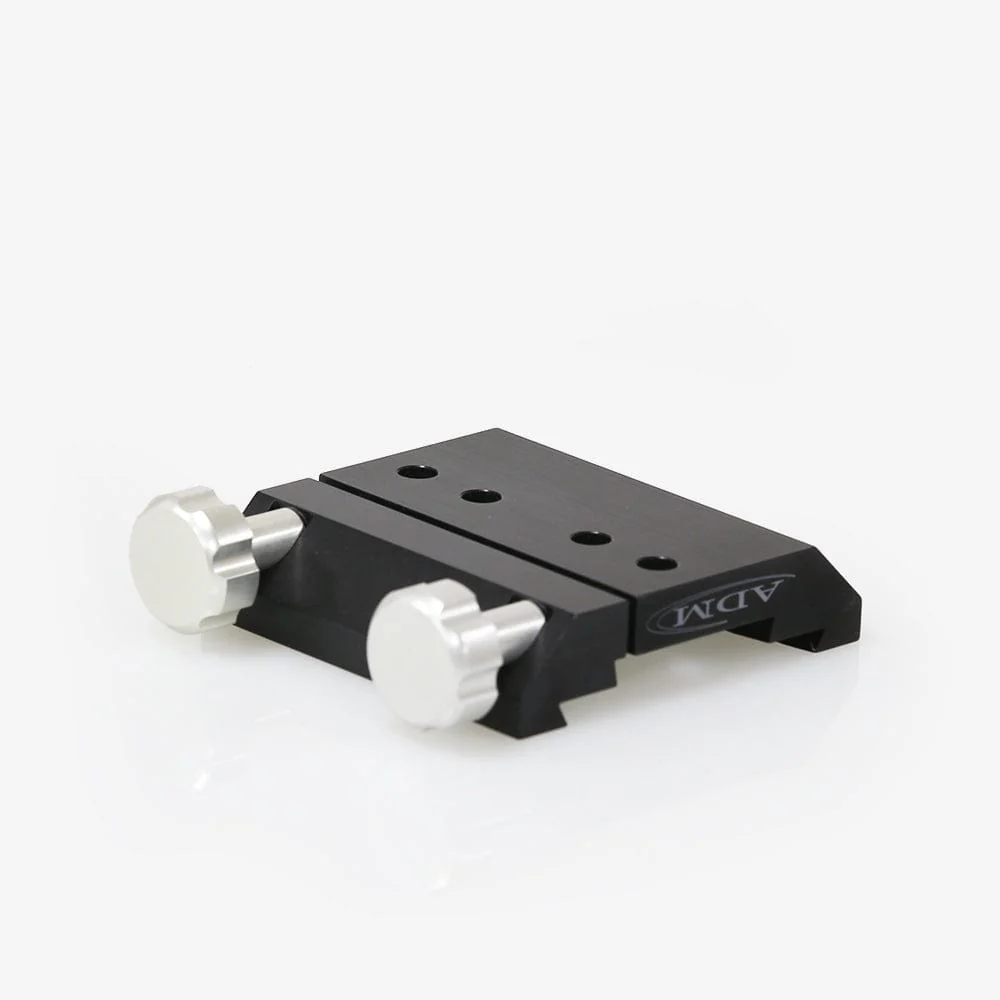

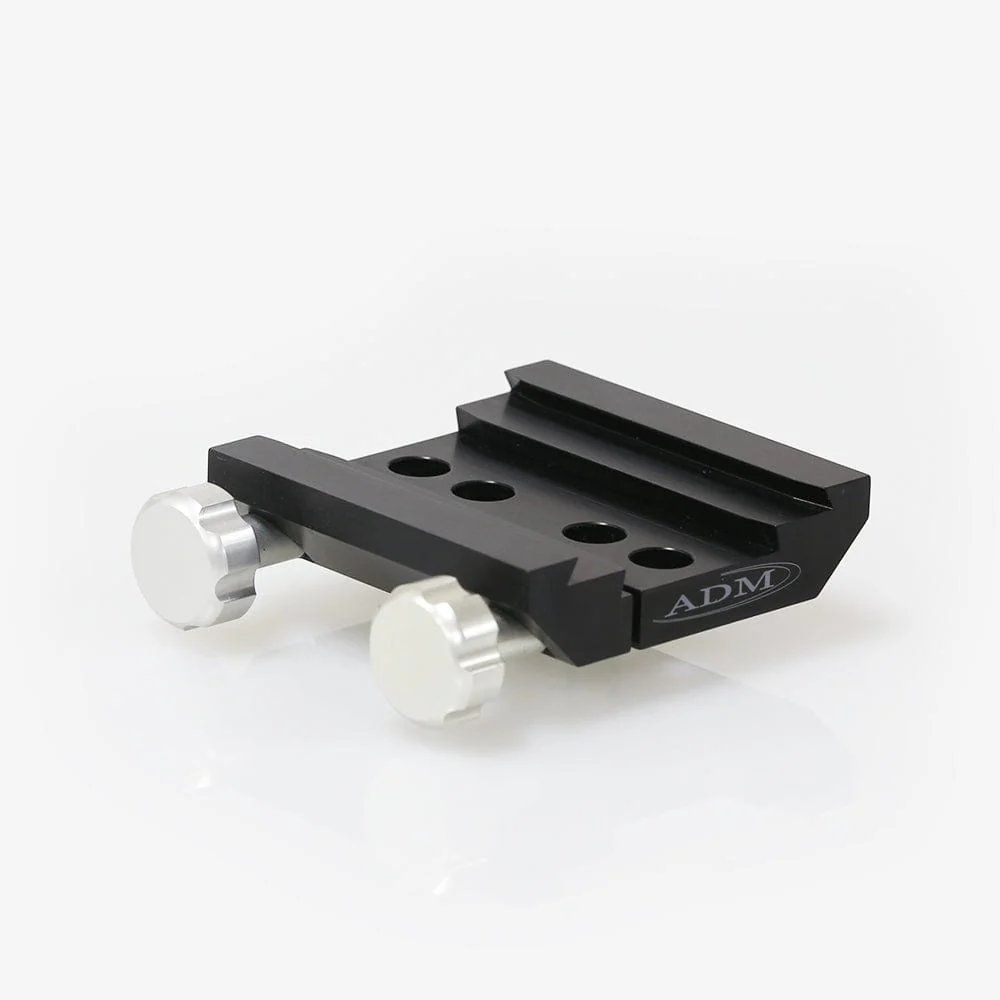

The 4″ DUAL saddle would be the perfect way to convert the saddle on smaller, lightweight, portable mounts like the Rainbow Astro RST-135 or the ZWO AM5. Accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw. The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 4″ Long, 4″ Wide, .75″ thick, Weight. 16 oz.



INCLUDED ITEMS:

-1x 4″ DUAL Series Saddle
-2x M8 SHCS



Weight	1.2lbs
Dimensions	8 × 6 × 2 in
