ADM DUAL Series Saddle 8mm Counterbored Version - DUAL-M8
Fits many ADM Accessories mount adapters as well as the Losmandy G11 and some Takahashi mounts.
Accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw.

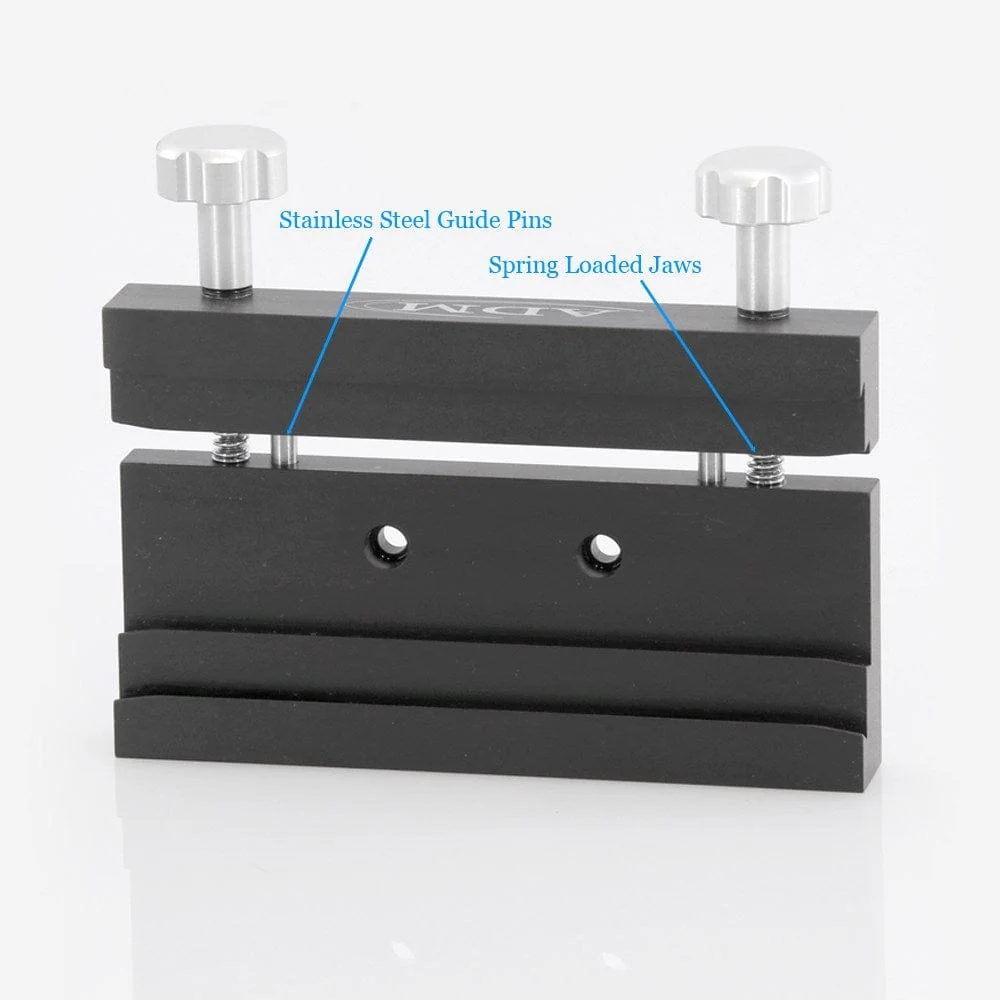

The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar.
Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick.
This saddle is compatible with Hobym mounts.

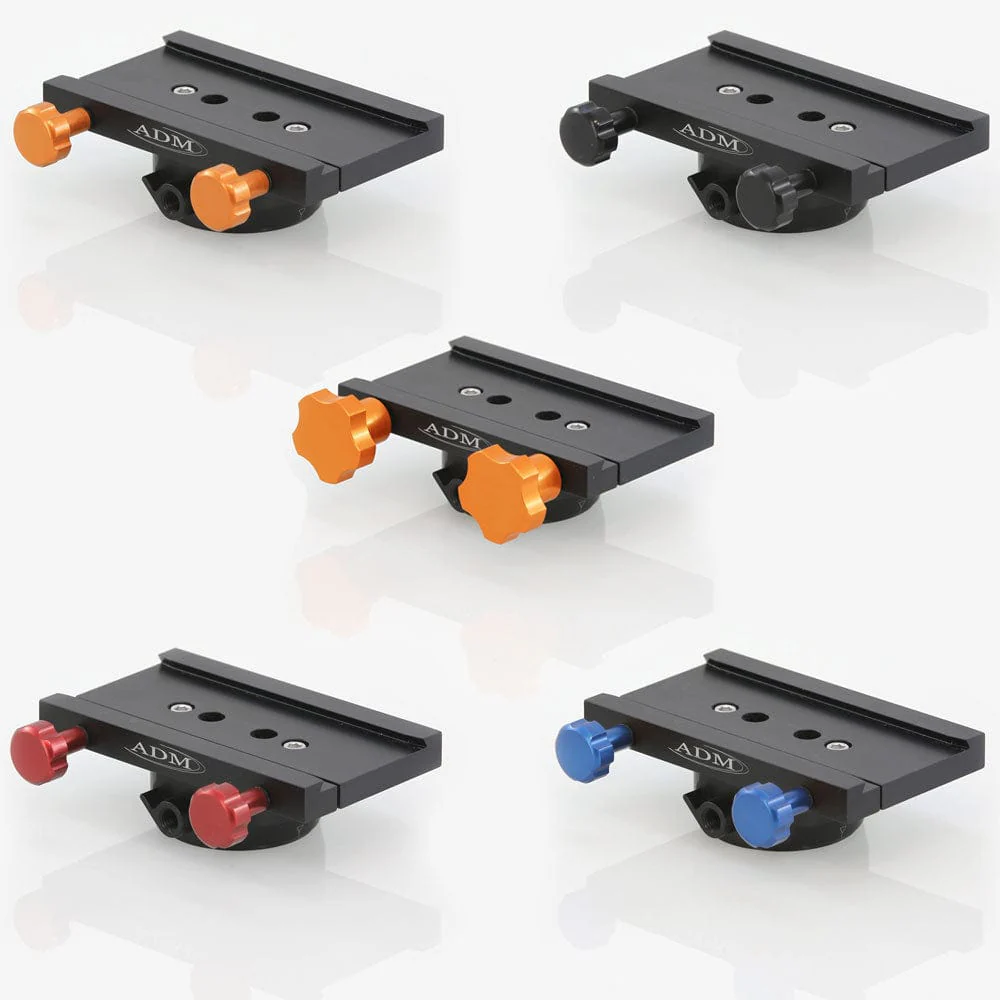

Custom knob colours can be special ordered.
INCLUDED ITEMS
- 1x DUAL Series Saddle
- 2x 1/4×20 SHCS
Â
Specifications
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fits many ADM Accessories mount adapters as well as the Losmandy G11 and some Takahashi mounts.
Accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw.
The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar.
Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick.
This saddle is compatible with Hobym mounts.
Custom knob colours can be special ordered.
INCLUDED ITEMS
- 1x DUAL Series Saddle
- 2x 1/4×20 SHCS
Â
Specifications
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
