Baader 6.5nm Narrowband-Filterset 65x65mm – CMOS-optimized (H-alpha / O-III / S-II)

Highlights

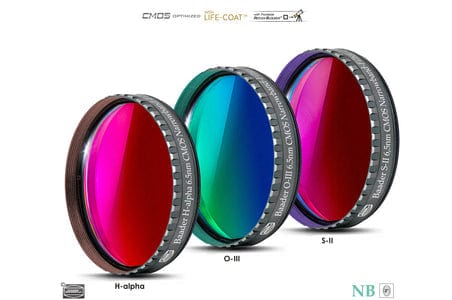

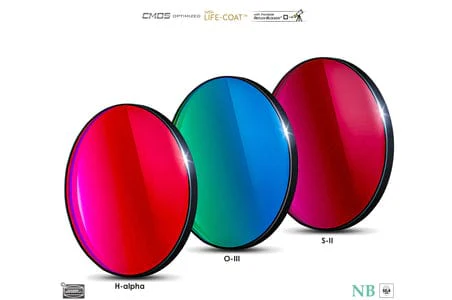

• 65 x 65 mm x 3 mm Baader CMOS H-alpha / O-III / S-II Narrowband Filter Set – Precision Grade

• 6.5 nm FWHM, recommended for optical systems from > f/3.4
• Reflex-Blocker™ hard coated and Plane-optically polished – with sealed coating edges (Life-Coat™)
• Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
• Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

Description

Increased contrast

Ever more narrow band-passes

Reflex-Blocker^™ coatings, for largest ever freedom from halos, even under most

adverse conditions concerning aux-optics

FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio

Identical filter thickness to existing standards, with utmost care for remaining Par focal

Blackened edges all around, with filter-lead-side-indicator in the form of a black front side outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter

Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)

Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment



Specifications

Manufacturer	Baader Planetarium
SKU (#)	2961656
EAN Code	4047825103956
Net weight (kg)	0.26
Suitable for f/ratio	> f/3.4

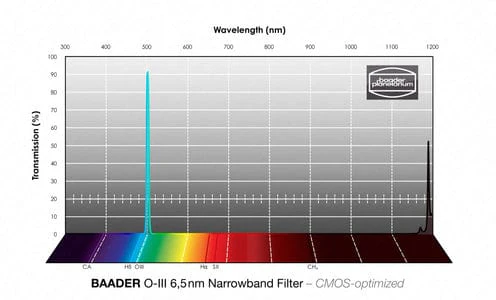

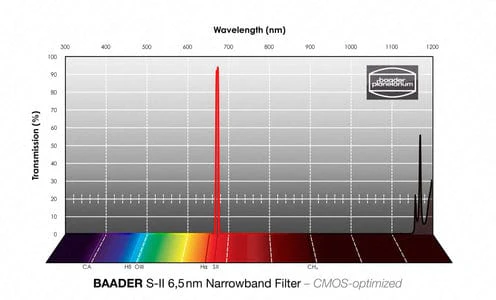

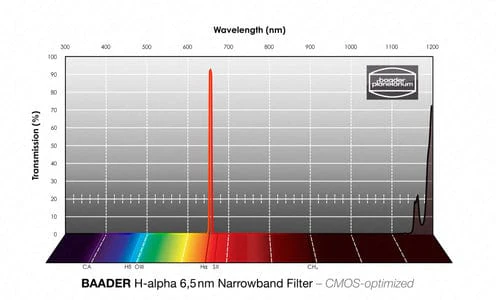

Transmission Range	H-alpha / O-III / S-II
Filter Thickness (without cell)	3 mm
HBW (Half bandwidth)	6.5 nm
CWL (Central Wavelength)	656,3 nm / 500,7 nm / 671,7 nm
AR-Coating	Reflex-Blocker™ hard coated, Plane-optically polished
Special Features	CMOS-optimized with Life-Coat™
Filter size	65 x 65 mm
Filter Usage	CMOS, CCD, H-alpha, O-III, S-II
Filter mounted	Unmounted
Type of Filter	Narrowband
Single or Set?	Filter-Set
Filter shape	square
