ZWO 7 Position 2"/50mm Electronic Filter Wheel - ZWO-EFW-7X2
ZWO EFW (5 x 2ā³or 7 x 2ā³)
Product weightļ¼EFW 5 x 2ā³=500g / EFW 7 x 2ā³=650g
Power supplyļ¼USB2.0
Control Modeļ¼ ASCOM and SDK
Driverļ¼Free of driver

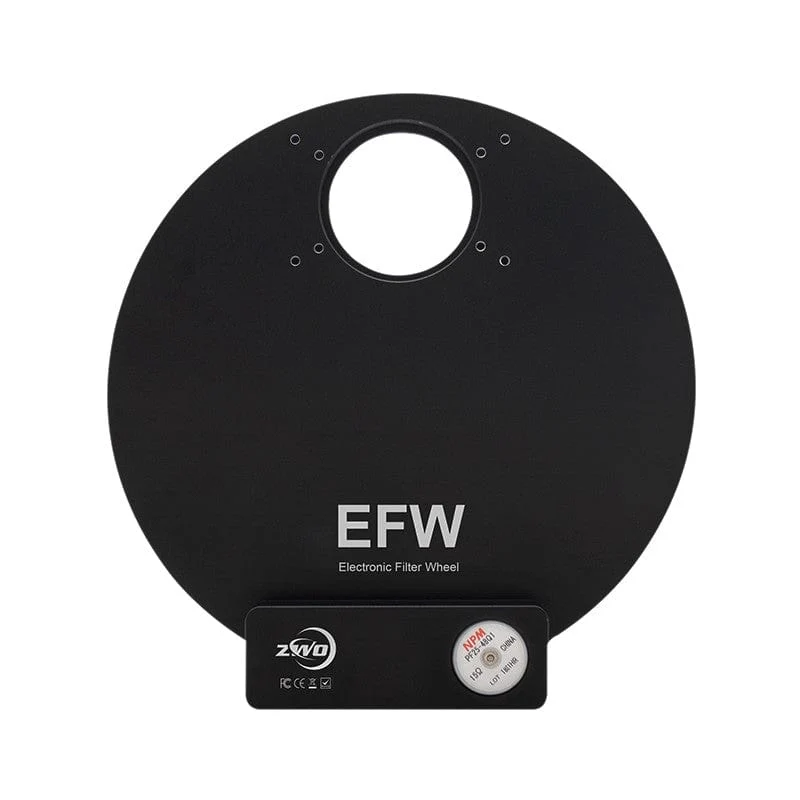

The filter wheel body is CNC milled from an aircraft graded aluminum block.
Excellent craftsmanship, very thin and light with only 20mm thickness.
The core part of our EFW is the stepper motor which has reliable performance and quality that comes from NPM, Japan.
We have two specifications for EFW2":
TYPE1: EFW5X2"
TYPE2: EFW7X2"
Ā 2ā³ Thread-In Filters or
50.4mm Ā±0.5mm Unmounted Filters can be usedĀ

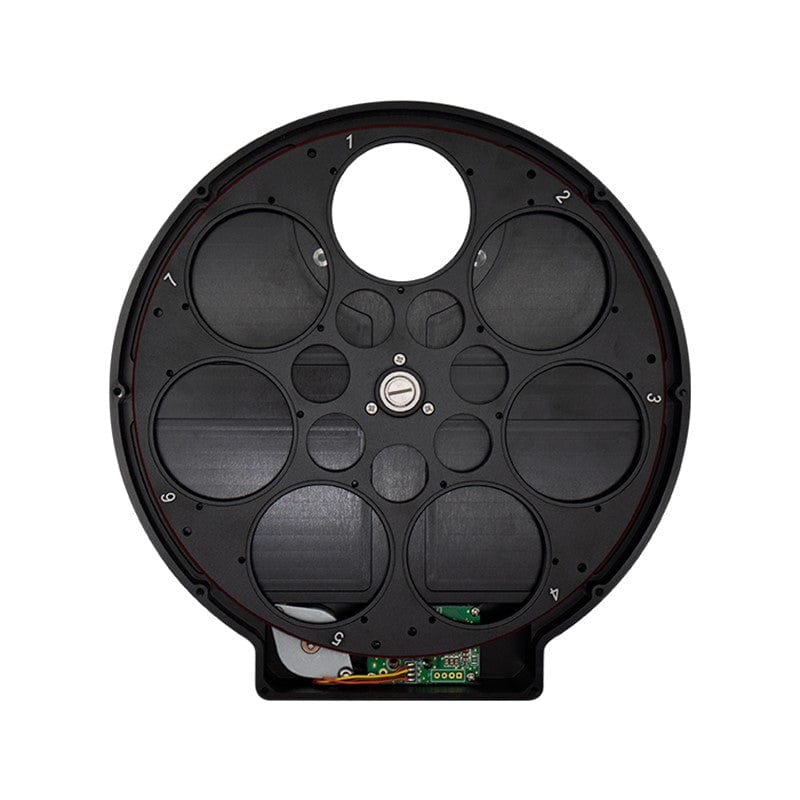

The 2" Electronic Filter Wheel can be rotated in both counter clockwise and clockwise direction for filter selection.
There is no need of multiple cables to power this wheel up, just one USB cable does the trick.The maximum power supply of this EFW is approximately 120mAh @ 5V, which can be operated from the Cooled CCD's USB2.0 port.
When connected to ASI6200, the distance from the filter to the sensor is about 18mm
Our 2ā³ RGBL filters are recommended to work with ASI6200MM Pro camera, it will offer nearly 1:1:1 RGB color balance.
Ā
Below requirements must be met while using the 2" filter from third-party.
FiltersĀ (notĀ includingĀ theĀ threads)Ā mustĀ beĀ lessĀ thanĀ 7.5mmĀ inĀ thickness and less than 50.8mm in diameter. ThreadsĀ mustĀ beĀ lessĀ than 2.7mmĀ inĀ thickness.
Ā
What's in the box?
1. EFW2*5 or FW2*7 body
2. USB2.0 ā 2m cable
3. A bag of M2.5*6 screws (6pcs/ bag)
4. A bag of filter masks for 50mm filters (7pcs/ bag)
5. Phillips screwdriver
6. A bag of M2*4 flat screws (23pcs/ bag)
7. M54M-M48F adapter
8. M54M-M42F adapter
Mechanical drawing
Usage guider:
5 connection methods of ASI6200 to get 55mm back focus length:
https://astronomy-imaging-camera.com/tutorials/5-connection-methods-to-get-55mm-back-focus-length.html
