Svbony SV138 1.25" Metal 45 Degree Prism Diagonal - W9107A

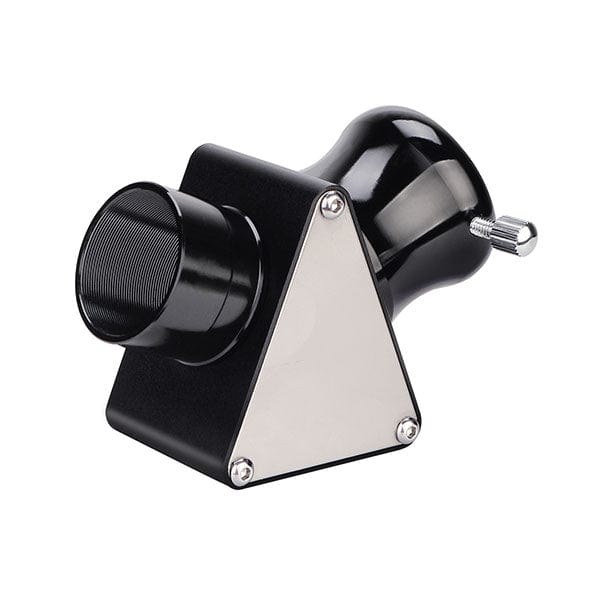

Product image 1

Svbony SV138 1.25" Metal 45 Degree Prism Diagonal - W9107A

This Svbony 45 degree diagonal has a BK7 prism to ensure high-quality optical characteristics. The black baffle design inside the lens barrel can prevent glare and make the image clearer.

  • 45 degree diagonal is made of a CNC aluminum alloy
  • BK7 prism to ensure high-quality optical characteristics
  • Diagonal is designed with brass ring at the eyepiece port which will not damage the surface of the eyepiece when locking the eyepiece
  • In order to make it easier for observers to observe special objects, the Svbony 45 degree diagonal includes a filter thread for installing 1.25" filters



Specifications

Model

W9107A

Prism

BK7

Eyepiece size

   31.7mm±0.05mm

Color

black

Surface treatment process

All-metal CNC oxidation

Surface Material of mirror body

Stainless steel for Aluminum alloy shell

Plug-in manufacturing process

Black Bright Oxidation

Angle

45 degree

Eyepiece end socket

Design of Brass Ring for Port

Specifications

1.25 inch standard interface

Side

Double-sided metal oxide trigonometric cover

Dust cover

Black and White Dust Covers

Bright oxidation intubation

Thread design

Net weight

154g
$7.90

Original: $22.56

-65%
Svbony SV138 1.25" Metal 45 Degree Prism Diagonal - W9107A—

$22.56

$7.90

Product Information

Shipping & Returns

Description

This Svbony 45 degree diagonal has a BK7 prism to ensure high-quality optical characteristics. The black baffle design inside the lens barrel can prevent glare and make the image clearer.

  • 45 degree diagonal is made of a CNC aluminum alloy
  • BK7 prism to ensure high-quality optical characteristics
  • Diagonal is designed with brass ring at the eyepiece port which will not damage the surface of the eyepiece when locking the eyepiece
  • In order to make it easier for observers to observe special objects, the Svbony 45 degree diagonal includes a filter thread for installing 1.25" filters



Specifications

Model

W9107A

Prism

BK7

Eyepiece size

   31.7mm±0.05mm

Color

black

Surface treatment process

All-metal CNC oxidation

Surface Material of mirror body

Stainless steel for Aluminum alloy shell

Plug-in manufacturing process

Black Bright Oxidation

Angle

45 degree

Eyepiece end socket

Design of Brass Ring for Port

Specifications

1.25 inch standard interface

Side

Double-sided metal oxide trigonometric cover

Dust cover

Black and White Dust Covers

Bright oxidation intubation

Thread design

Net weight

154g
