ToupTek ATR3CMOS Series M42 tilter

ToupTek ATR3CMOS Series M42 tilter

This tilter is for the ATR3CMOS series cameras (≥V4 version)

It has a four-point rear design, four to pull and eight to push, which ensures the stability of the adjustment effect.  Using wider spacing for adjustment, the adjustment process is intuitive and simple.

Installing the M42 Tilter

Remove the 4 screws from the M42 tilter

Remove the 17.5mm adapter from the camera

Place the base of M42 tilter on the camera and attach it with the screws

Hold the M42 tilter in place, then flip the camera

High quality light-blocking cotton is used, it's anti-leakage effect is excellent.

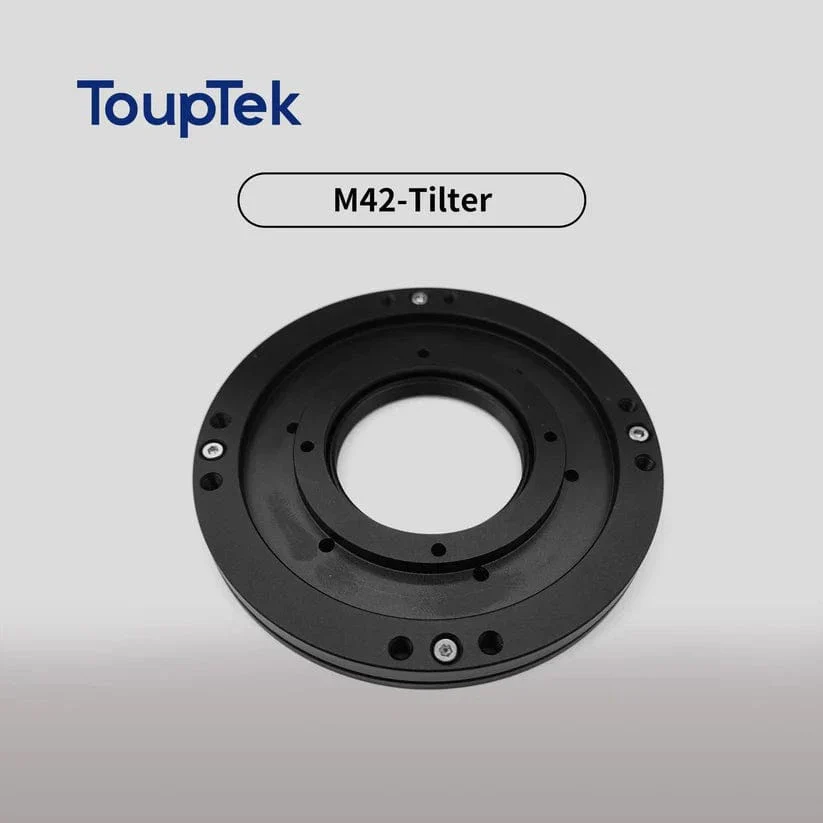

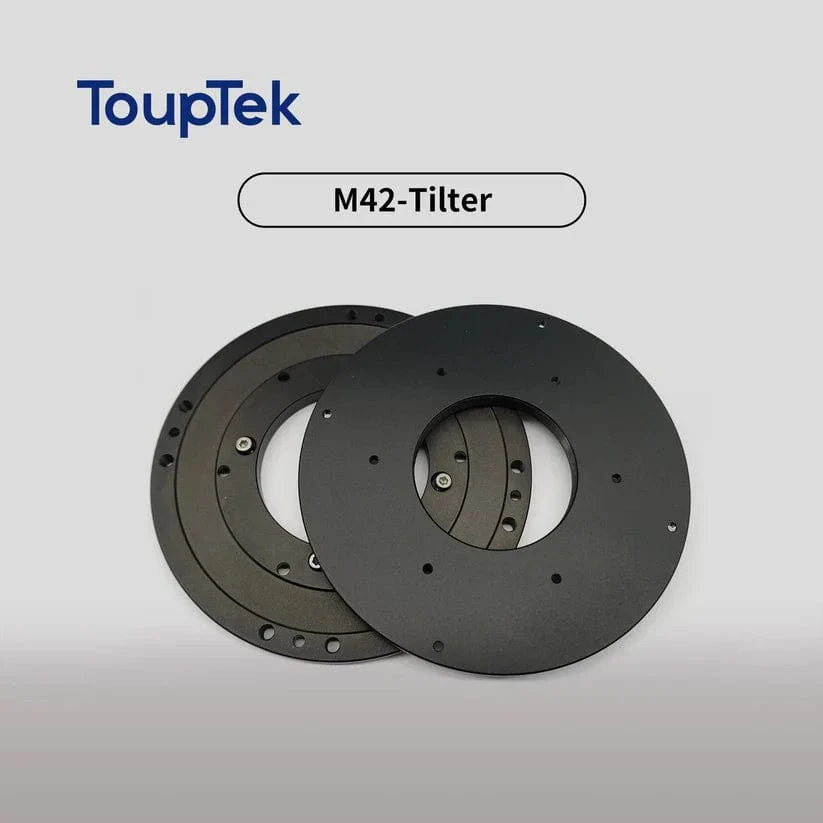

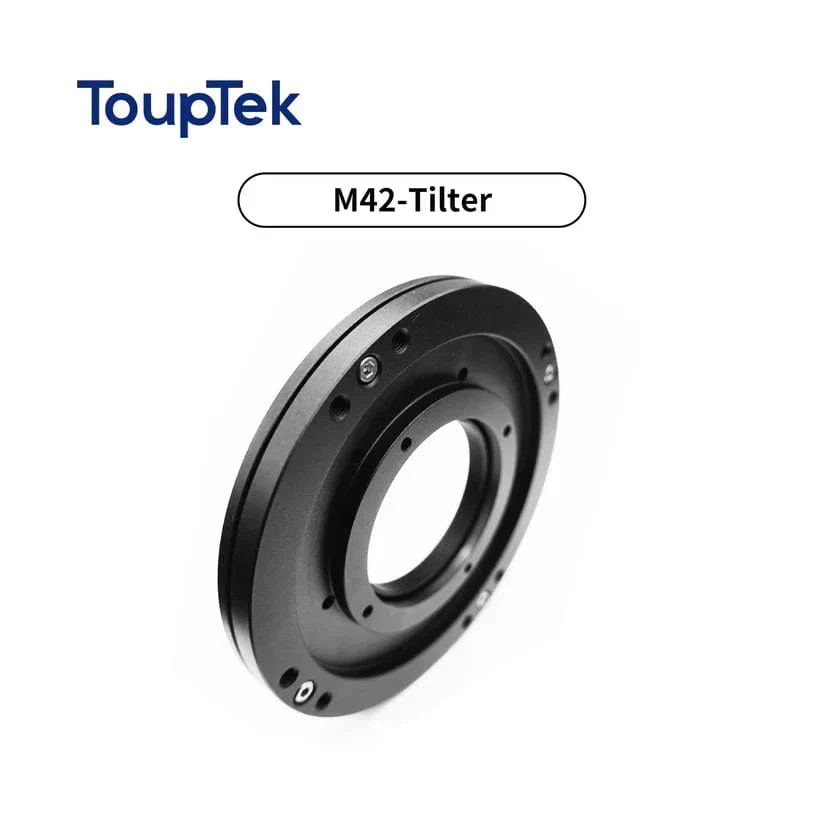

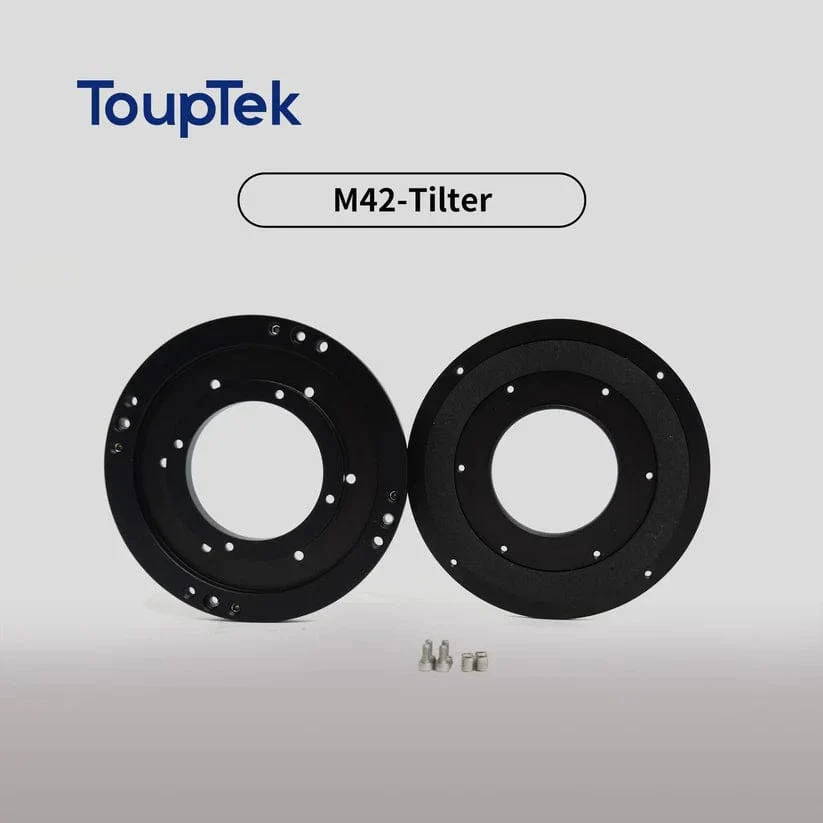

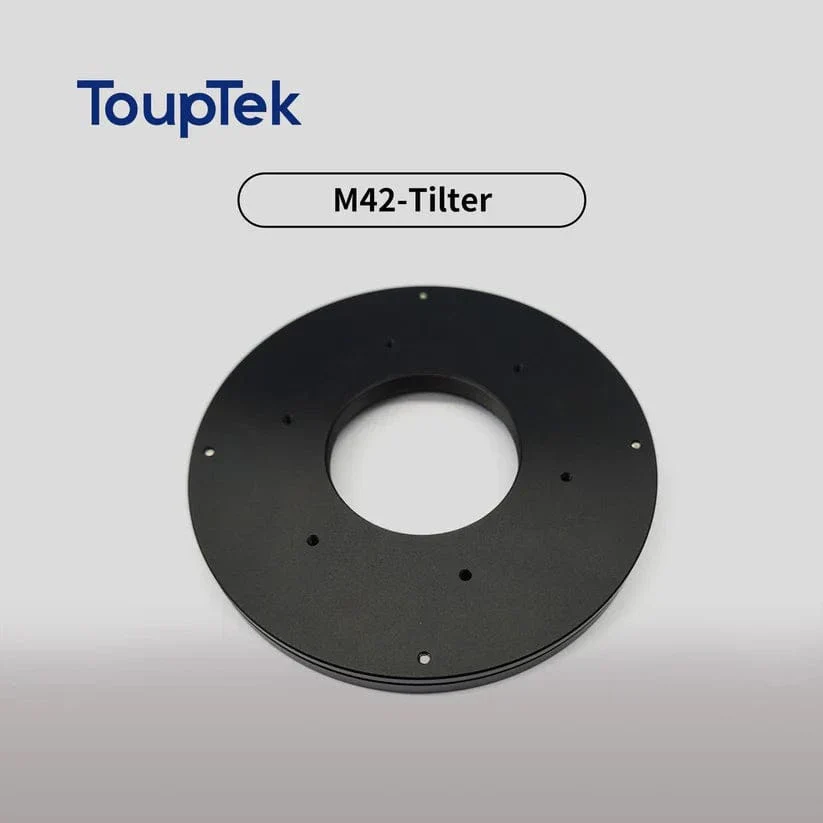

Product Images



Mechanical Diagram
