Svbony SV905C Telescope Guiding Camera 1.25" with CMOS Sensor for Astrophotography - F9198N

Highlights

• Telescope camera; compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars;
• Astronomy guiding camera has USB 2.0 interface output; ST4 guide star interface; can compatible with PHD2; MDL; NINA; SKY-X and other software guide star;
• The front of the eyepiece camera is equipped with a CS interface and a CS-C adapter ring; which can be matched with a CS lens or a C-mount lens;

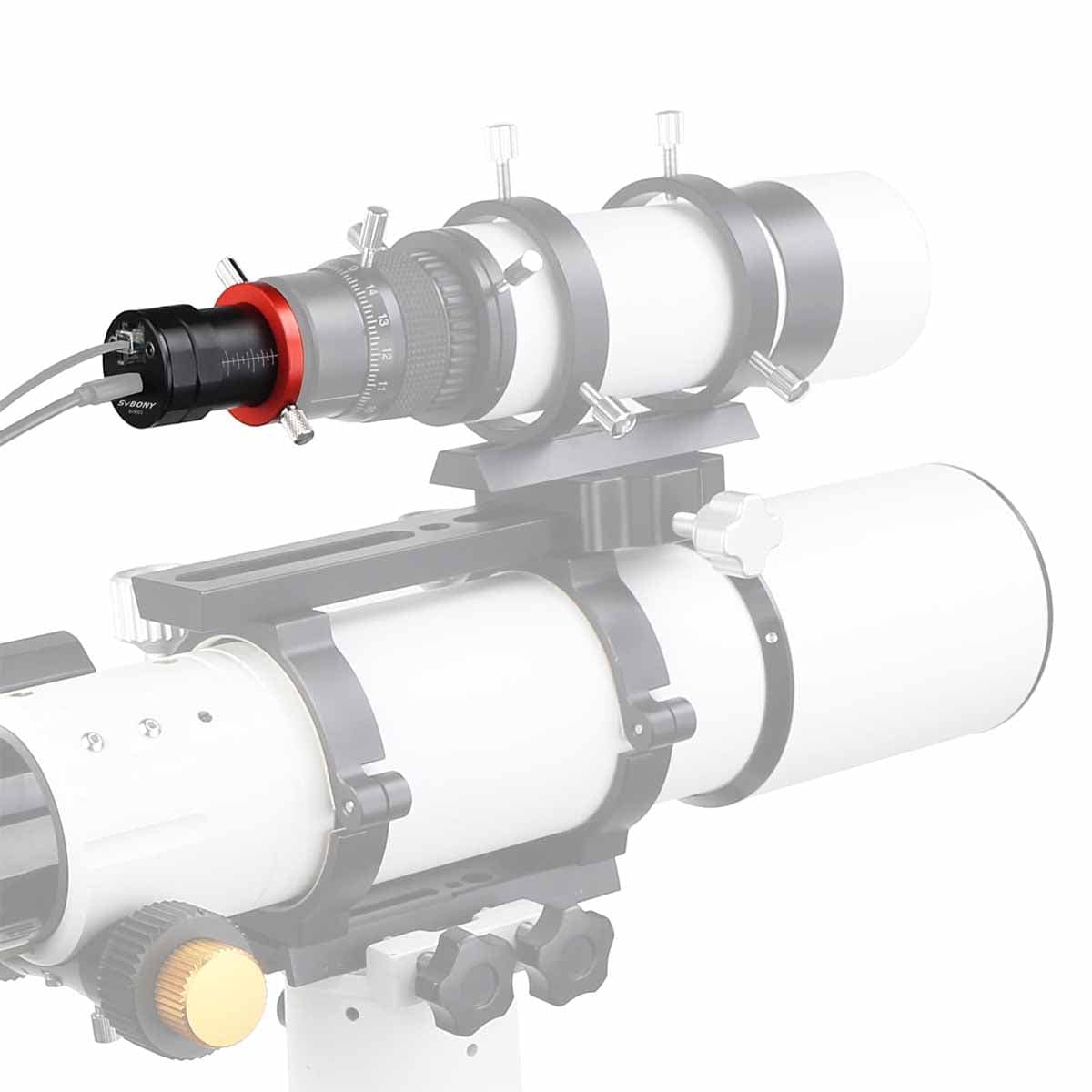

• The shape of the guide camera adopts a diameter of 1.25 inches; which can adapt to different focal length guide lenses and OAG guide stars;

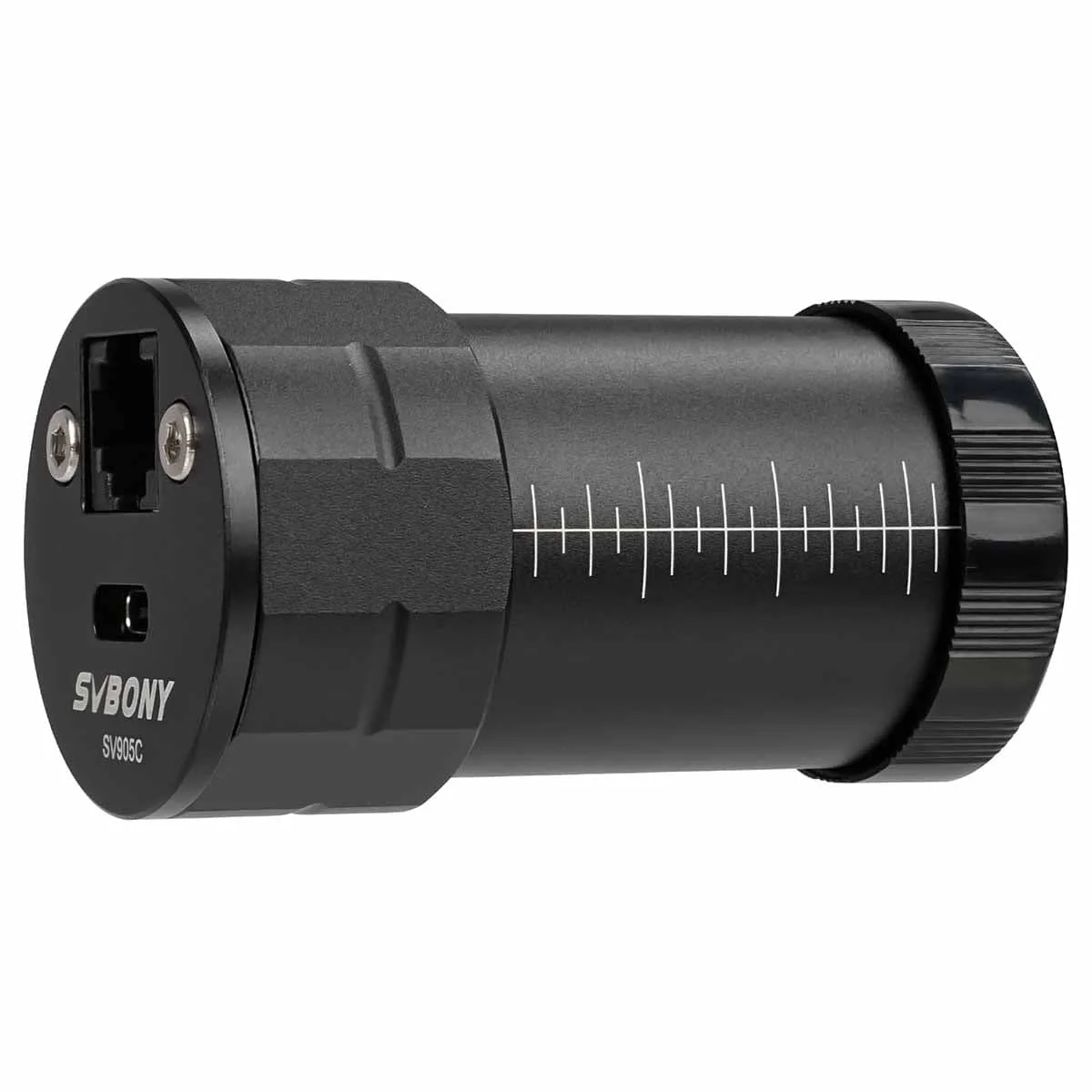

• The guide camera is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning.


USB2.0 Type-C and ST4 Interface

Standard Thread Size

Application Software

AR-coating

Model	SV905C
Sensor	ARO130
USB Type	TypeC USB2.0
Pixel Size	3.75µmx3.75µm
Image Area	4.8mm×3.6mm
Total pixels	1.2M pixel
Diagonal	6mm
Maximum Resolution	1280×960
Exposure Time	64us~20s
Gain	0-500
Maximum Frame Rate	39 FPS
Read noise	4.0 e
QE peak	80%
Shutter type	Rolling Shutter
Full well charge	13ke
ADC	12 bit
ROI function	Yes
Bin	1x1 2x2
Digital noise reduction	HCG mode
Video format	AVI mode
Communication interface	DirectShow interface
Application software	Windows OS: Sharpcap, Firecapture,PHD2          ASCOM platform Linux  OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture
Compatible system	Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS
Working temperature	- 5℃～45℃
Storage temperature	- 20℃～60℃
Working humidity	20% RH-80% RH
Storage humidity	20% RH-95% RH
Power consumption	<0.5W
Back intercept	8.5mm/12.5mm
Protective glass	AR Coating
weight(with parcel)	230g
Package size	162*132*70 mm
