Svbony SV503 Telescope ED 102mm F7 Doublet Refractor for Astronomy - F9359D

Highlights

• Rugged housing prevents damage
• Responsive and soft dual-speed focuser
• ED glass (S-FPL51) can produce very beautiful and clear images
• The fully multilayer-coated lens eliminates all reflections on the glass, and has little or no chromatic aberration at high magnification

The appearance of the telescope is baked with high-end fine-grained paint, with exquisite appearance and delicate feel.

The objective lens features a S-FPL51 extra-low dispersion glass ED element which virtually eliminates chromatic aberration. This results in the best color correction for an ED doublet lens.

The lens adopts optical processing and low polishing technology.

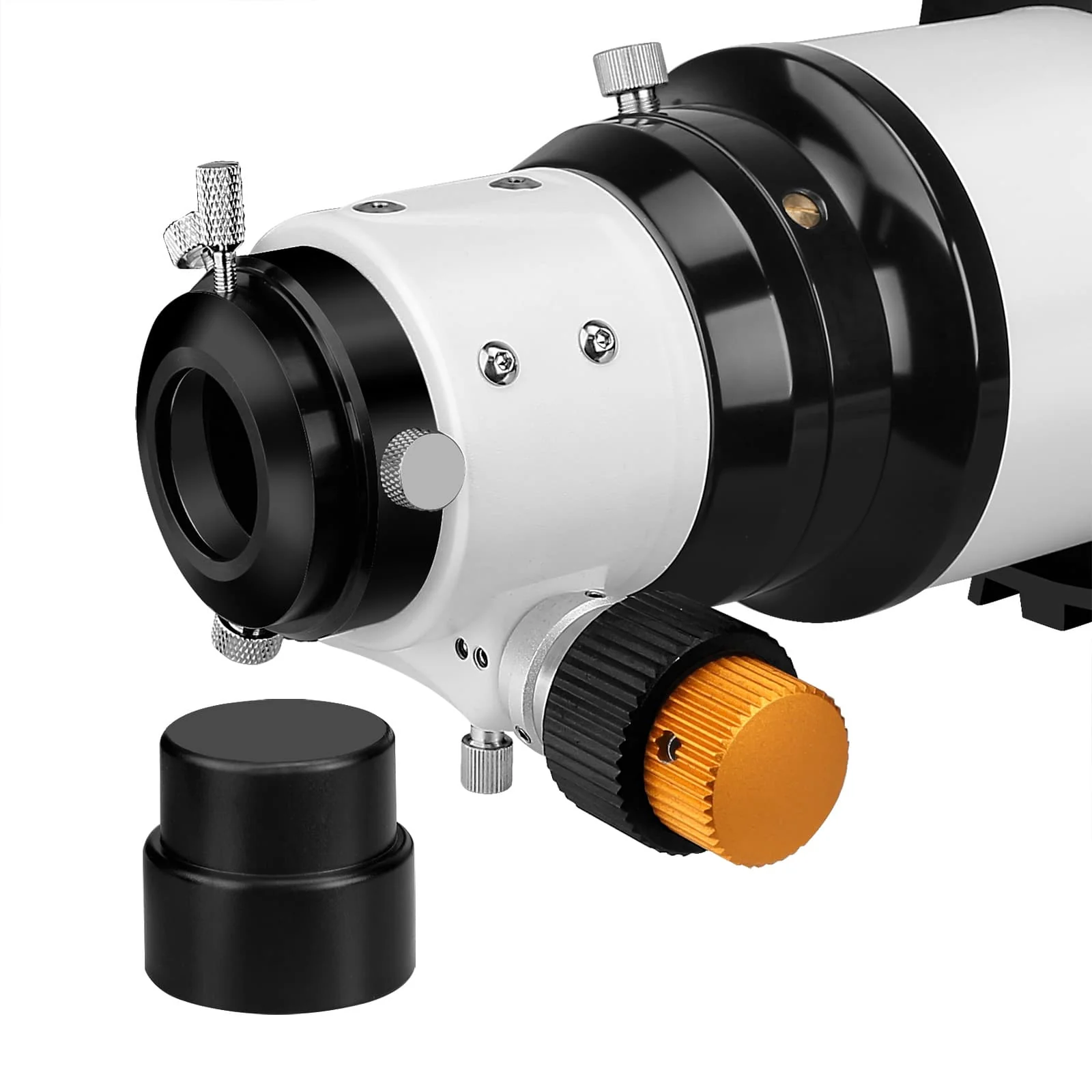

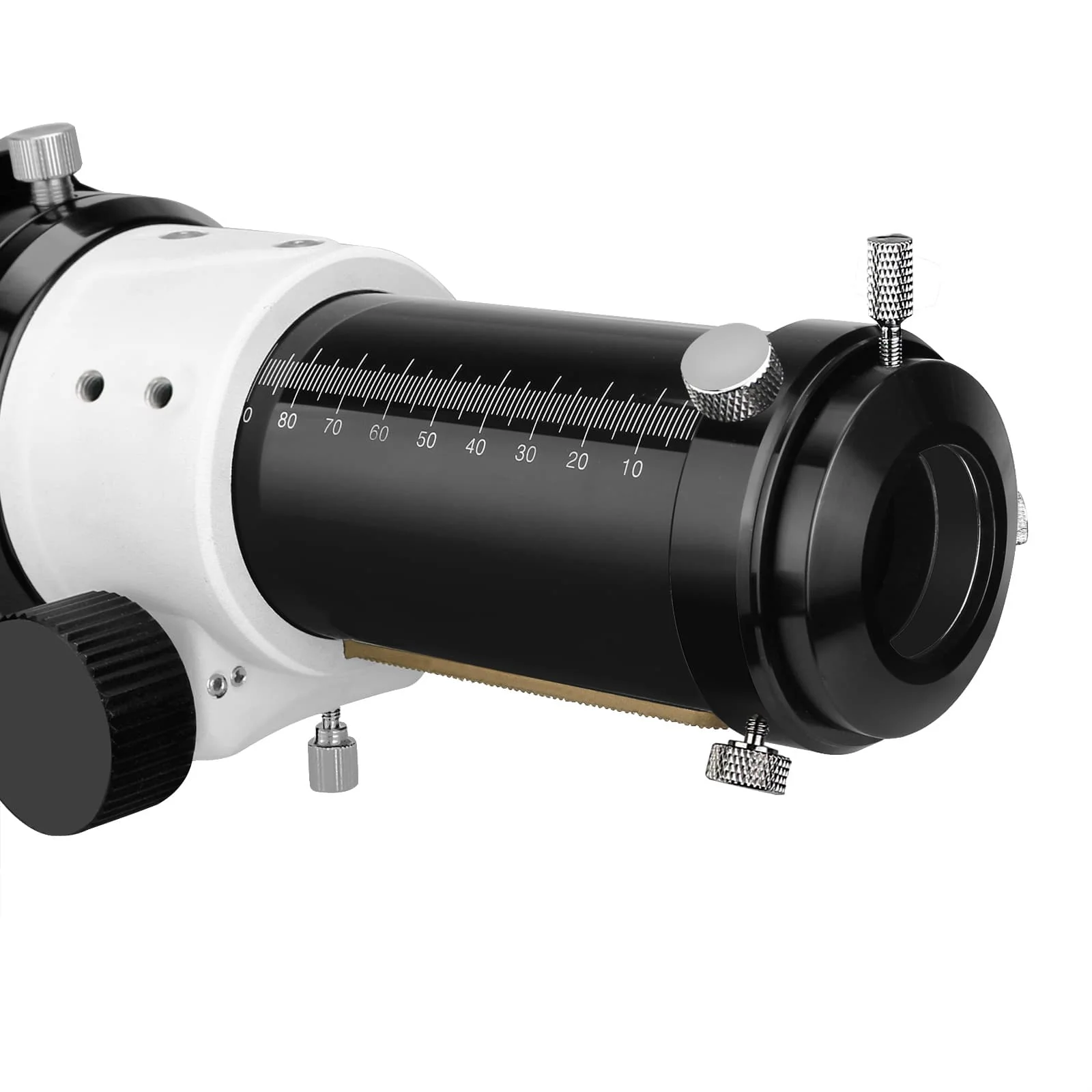

The ratio of the two-speed 2'' toothed focusing seat is 1:10, which makes it easy to achieve accurate focus.

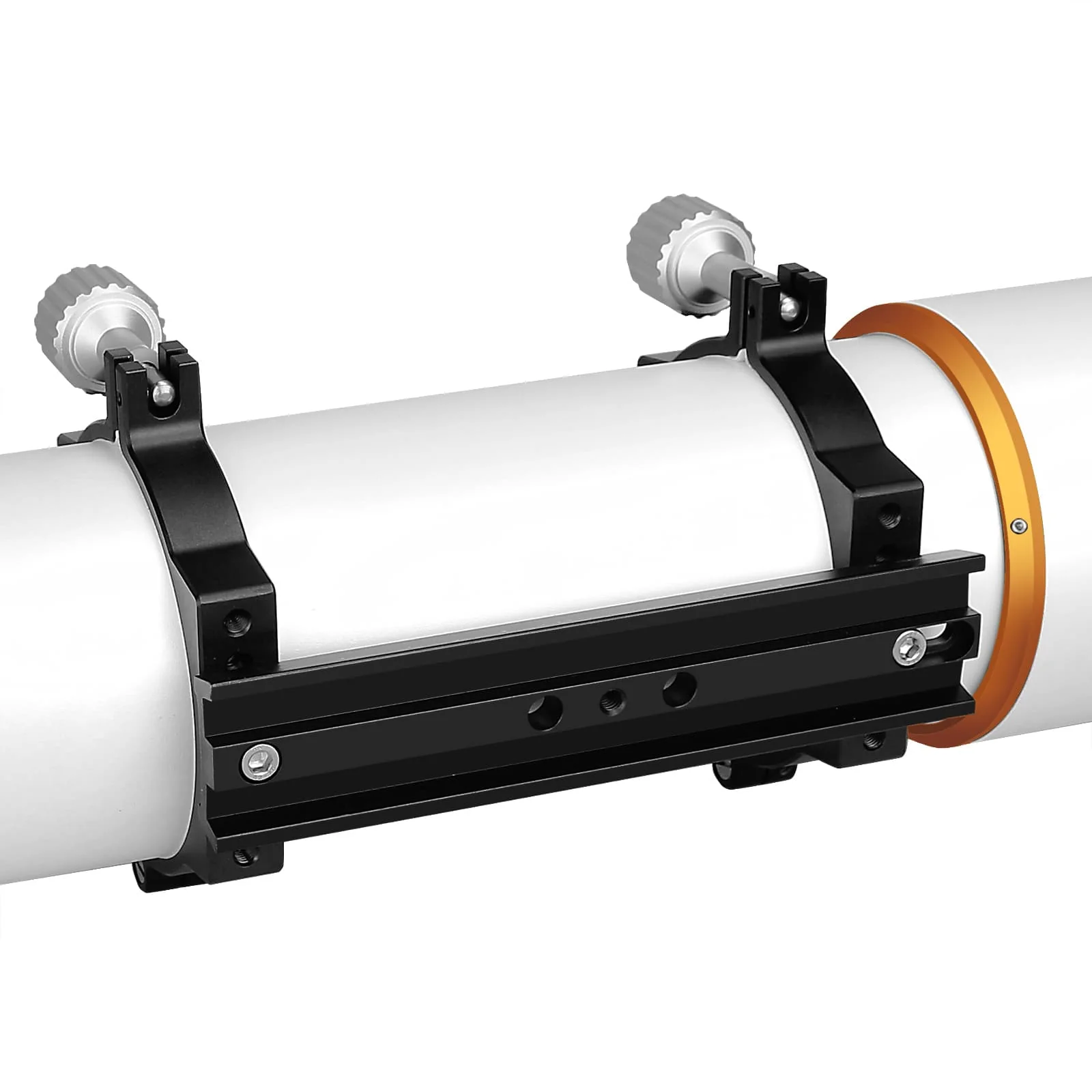

Includes metal rings and a 2'' to 1.25'' adapter.



Specifications

Product Name	SVBONY SV503 102F7 ED Astronomy Telescope
Type	Refractor
ED Glass	S-FPL51
Coating	SMC
Aperture	102mm / 4.01-Inch
Focal length	714mm
Focal Ratio	f/7
Type of Focuser	RAP (Rack and Pinion)
Gear Reduction	1:10 Fine movement
Resolving capacity	1.17"
Limit value	12.1
Light gathering capacity	212x
Max. Useful magnification	204x
Tube weight（with rings）	5.5kg
Tube outer diameter	121mm
Tube material	Aluminum
Back Focus Length	101.9mm
OTA Length	630mm
Dovetail & Ring	Yes
Dovetail Length	200mm
