Pegasus Astro Indigo OAG with Helical Focuser - PEG-INDIGOAGPREM

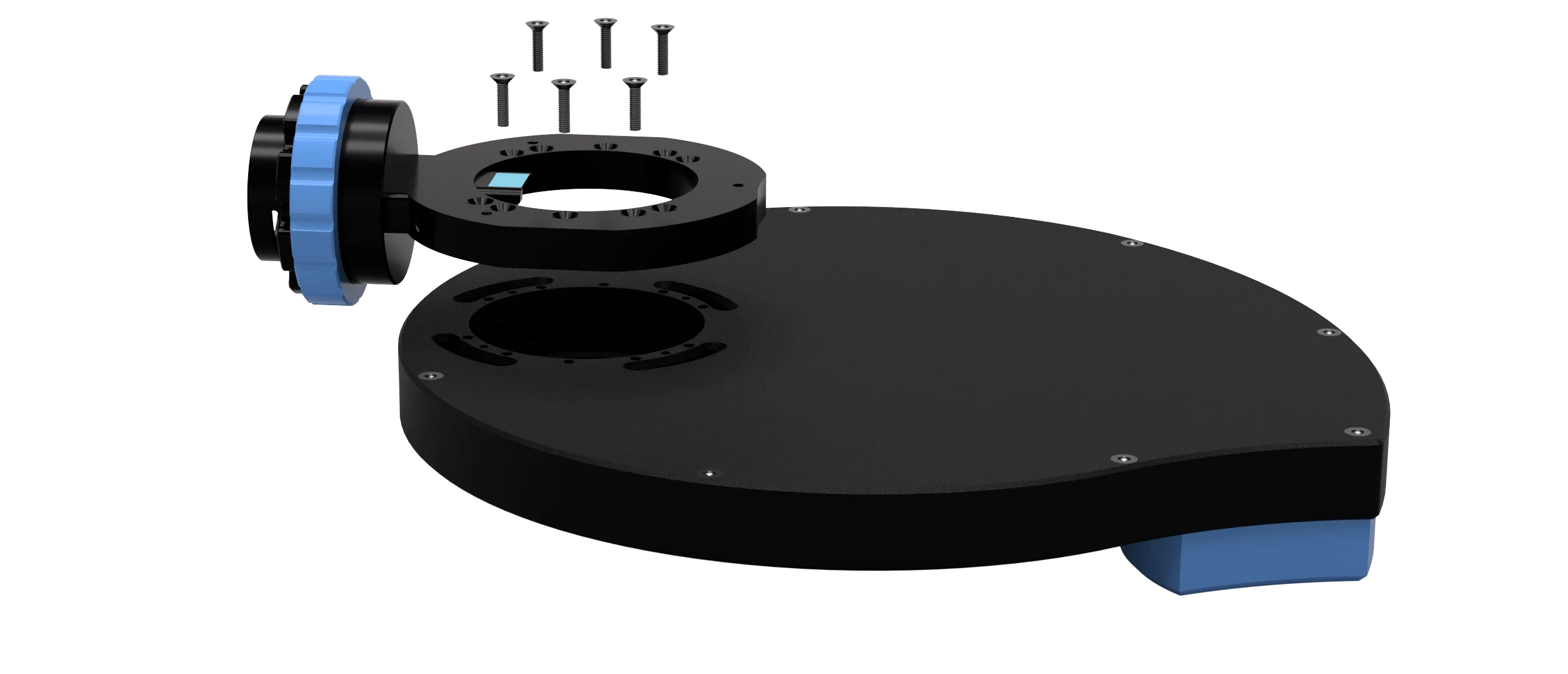

Our thin and solid design OAG can easily bond with our Indigo Filter Wheel. The OAG supports through holes (M2 and M3) in its body for direct connection with the latest CMOS cameras and other Filter Wheels.
The main advantage of having an OAG is that it uses theĀ same optical path as your primary imaging camera.Ā This avoids any issue with differential flexure that can occur when using a separate guide scope on top of your main telescope.

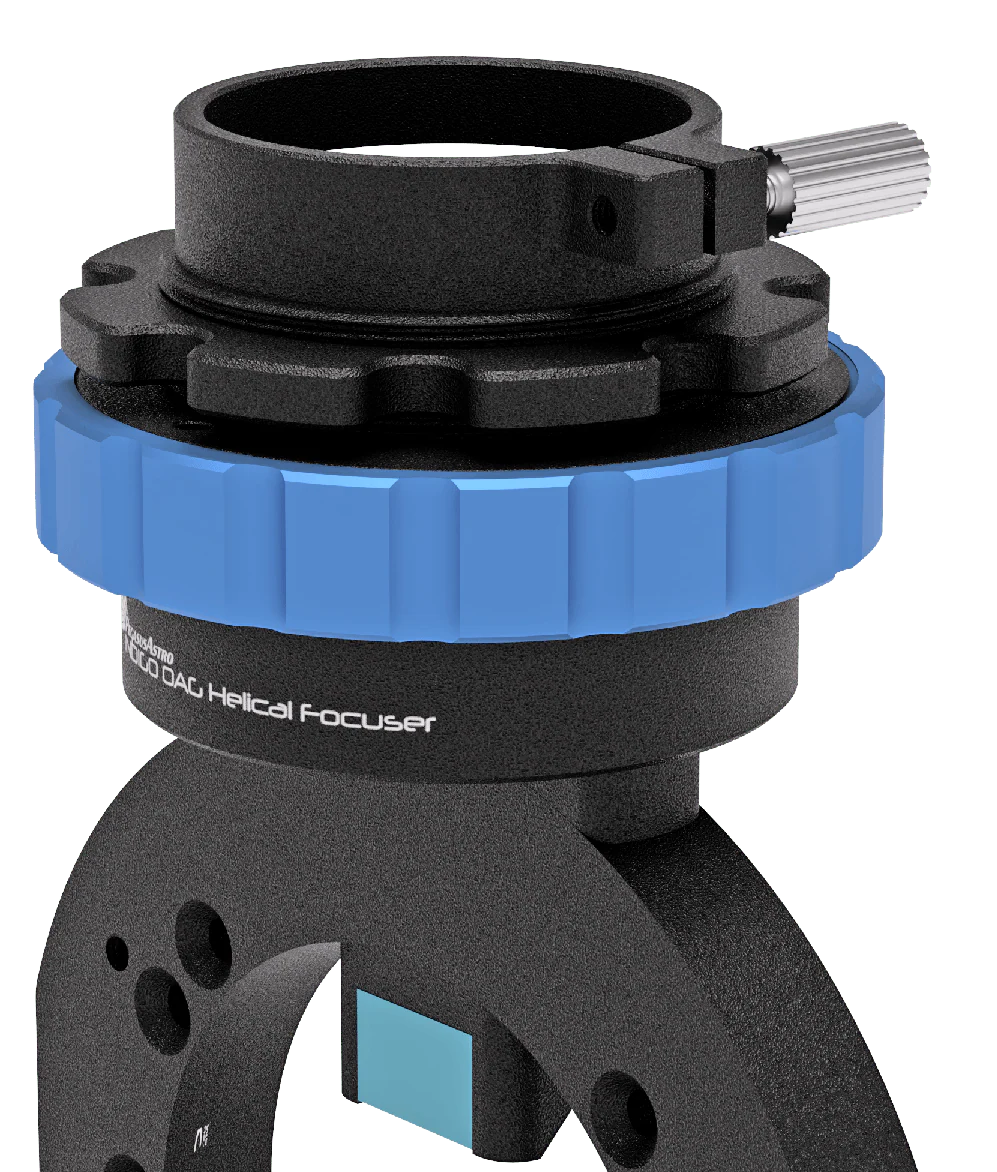

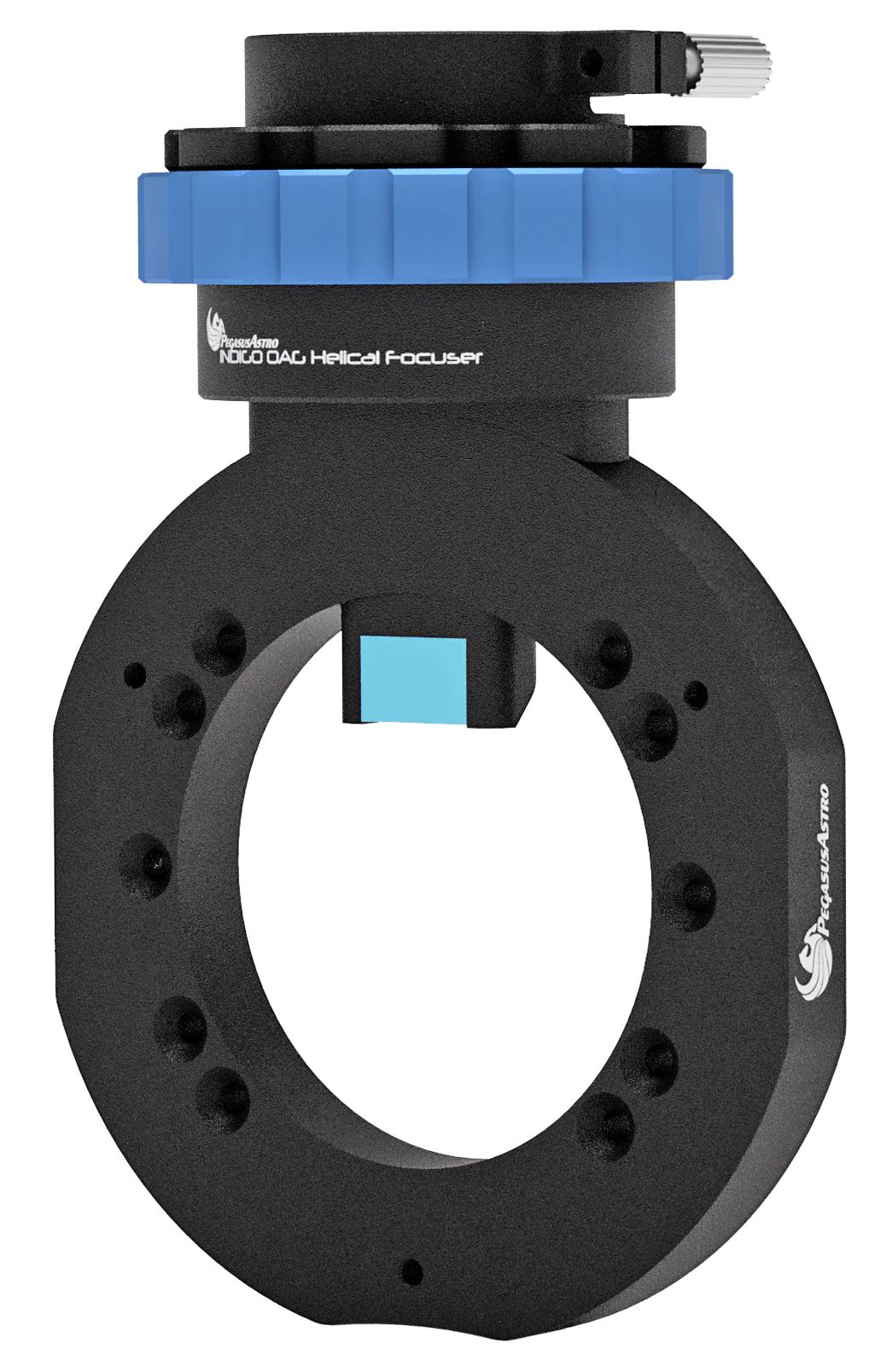

NewĀ helical focuser addonĀ providing precise focusing capabilities and seamless compatibility with 1.25ā guiding cameras commonly available in the market.
Please note that for customers that already own INDIGO OAG, the helical focuser can be bought separatelyĀ (SKU : PEG-INDIGO-OAGHF).
Thin Design
Indigo OAG has a very thin design. Its back focus is 10mm + 4mm of the telescope adapter. 14mm in total. OAG is CNC made of airplane 6061 aluminum alloy which ensures a lightweight and solid piece of equipment.
Adjustable prism
The prism height can be easily adjusted to allow better illumination of the field of view of the guiding camera. If your imaging camera sensor is large, the prism can be moved (and secured with set screws) upwards to disallow blockage of the sensorās optical path.
Large mirror
A 12Ć8 mm fully multicoated & anti-reflection mirror offers high illumination to your guiding camera. Stars are round and bright across the OAG ās field.
Large Size
Indigo OAG supportsĀ the 62mm through hole patternĀ for direct connection with latest CMOS cameras and Filter Wheels.
Guiding camera connection is a 1.25ā barrel.

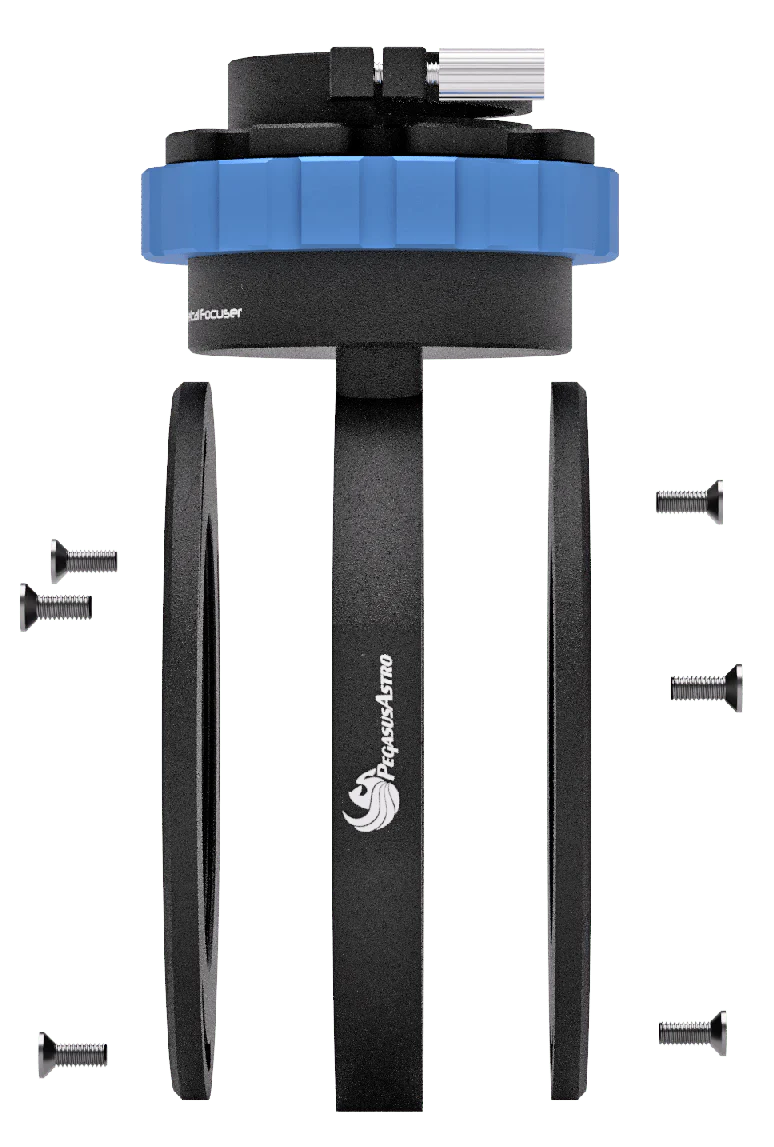

Orientation of image train framing can be achieved by the 3 screws that allow telescope adapter to slide inside the slots.
Documentation
Product Manual
