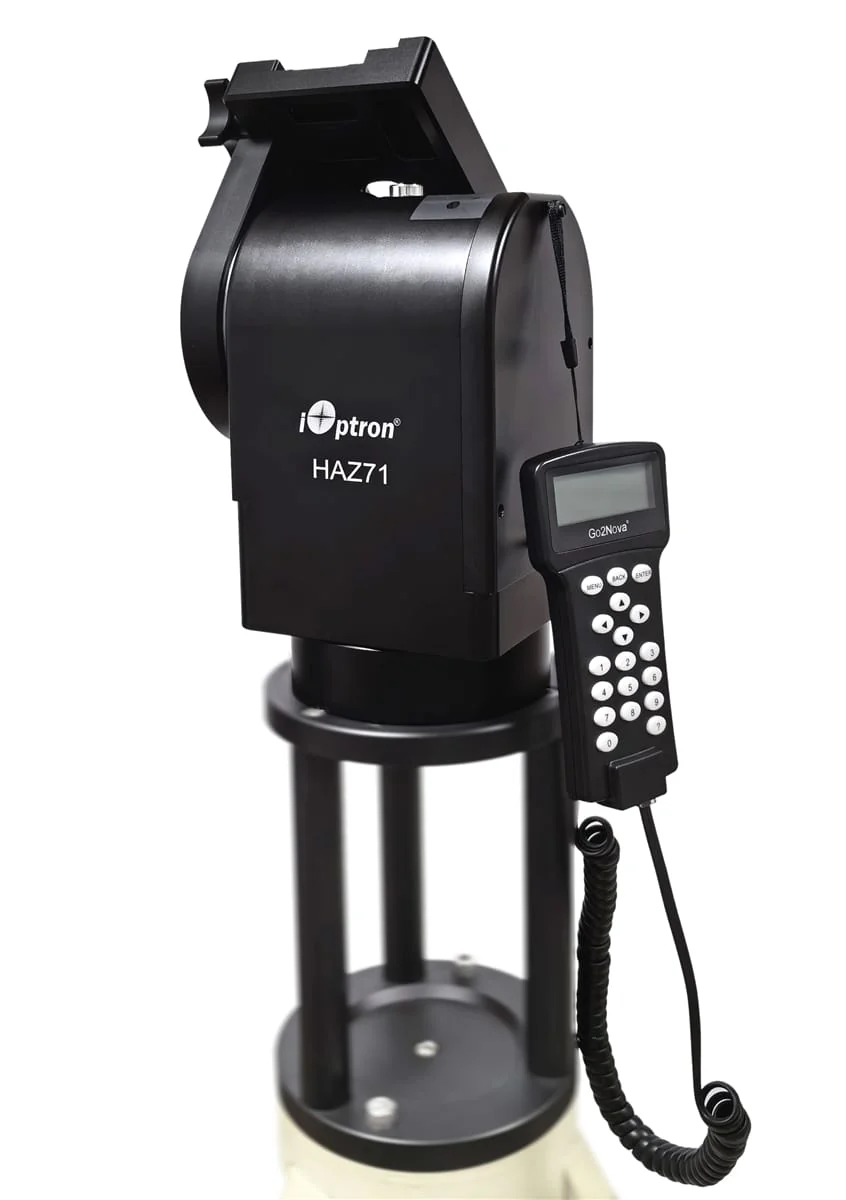

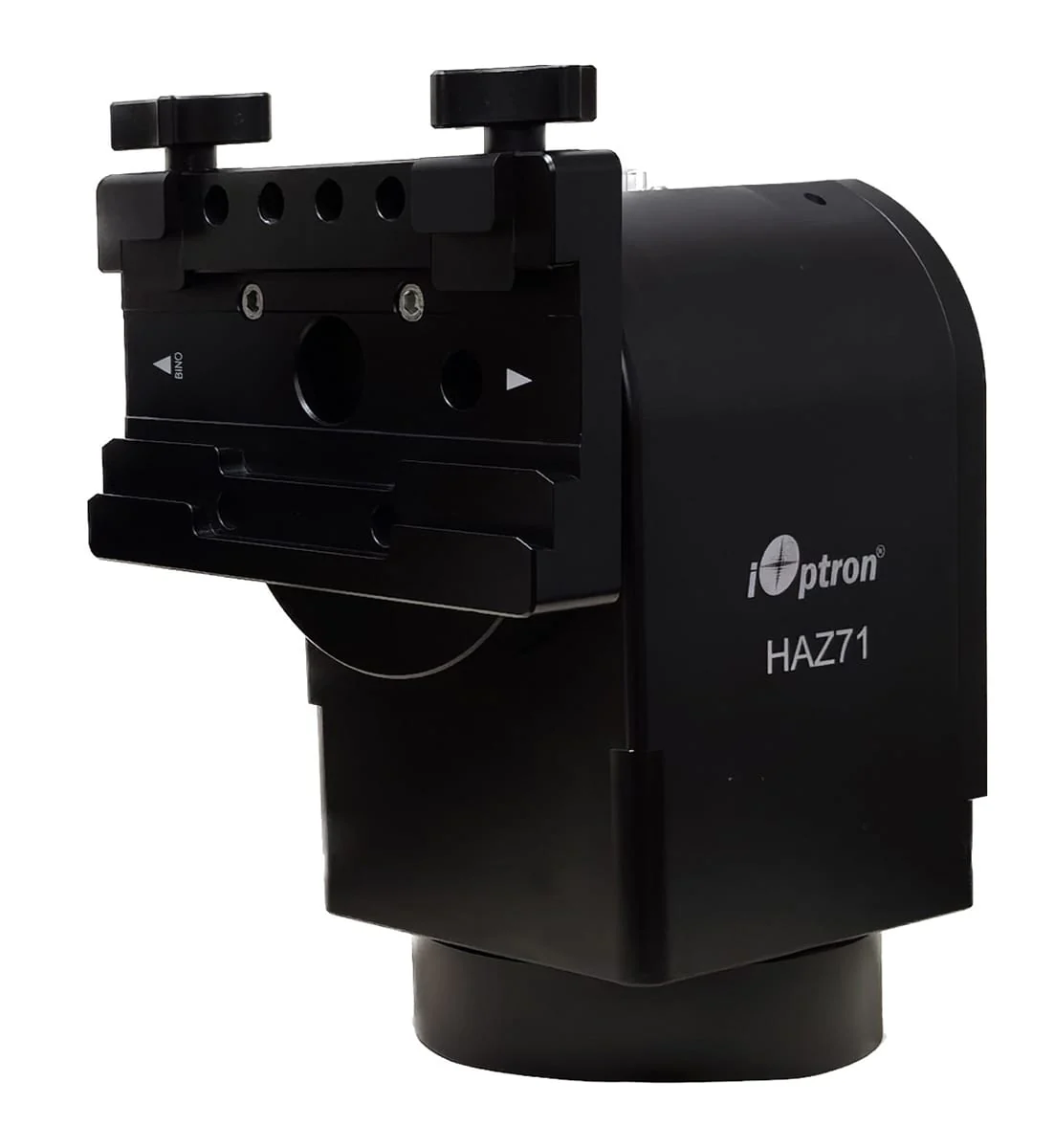

iOptron HAZ71 AZ SWG Strain Wave Mount - HZ712

Our latest exciting new Alt-Az strain wave gear mounts, HAZ71 joins the into iOptron SWG mount family!

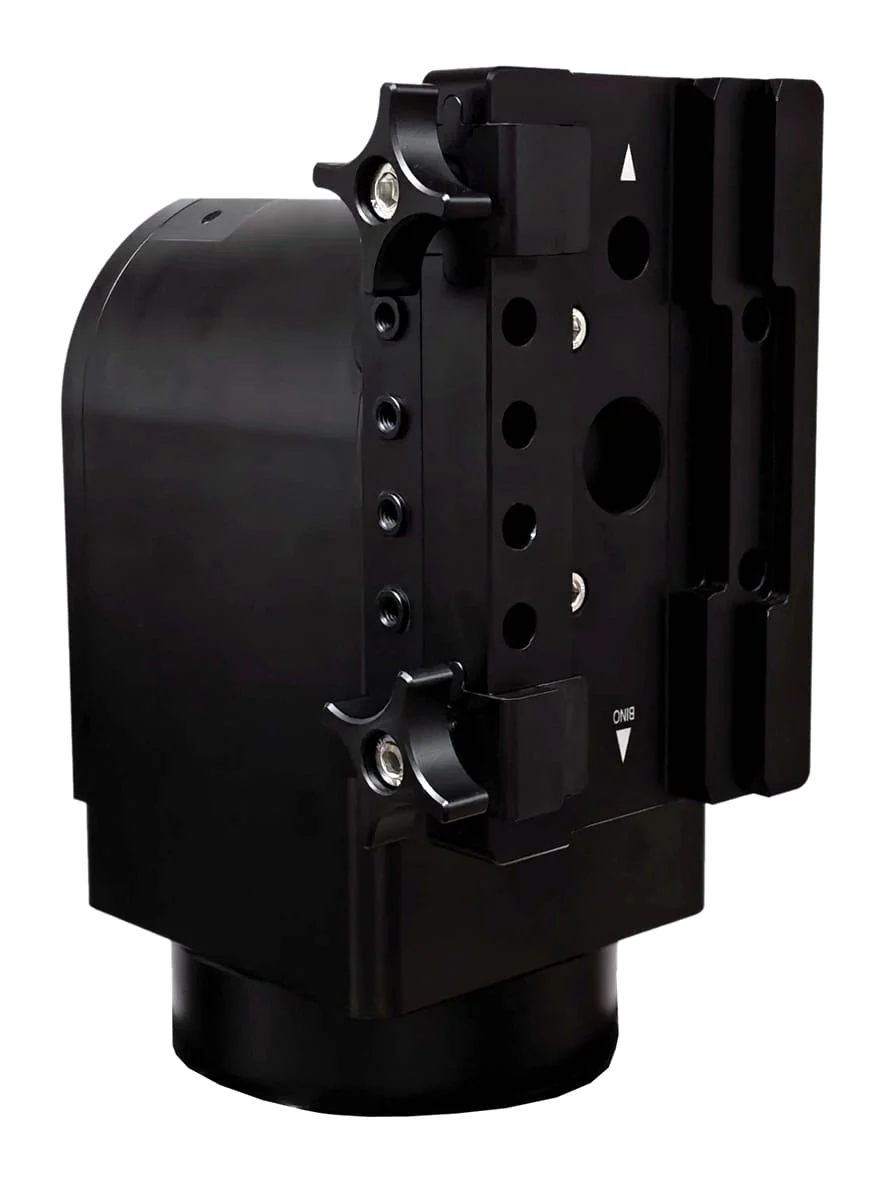

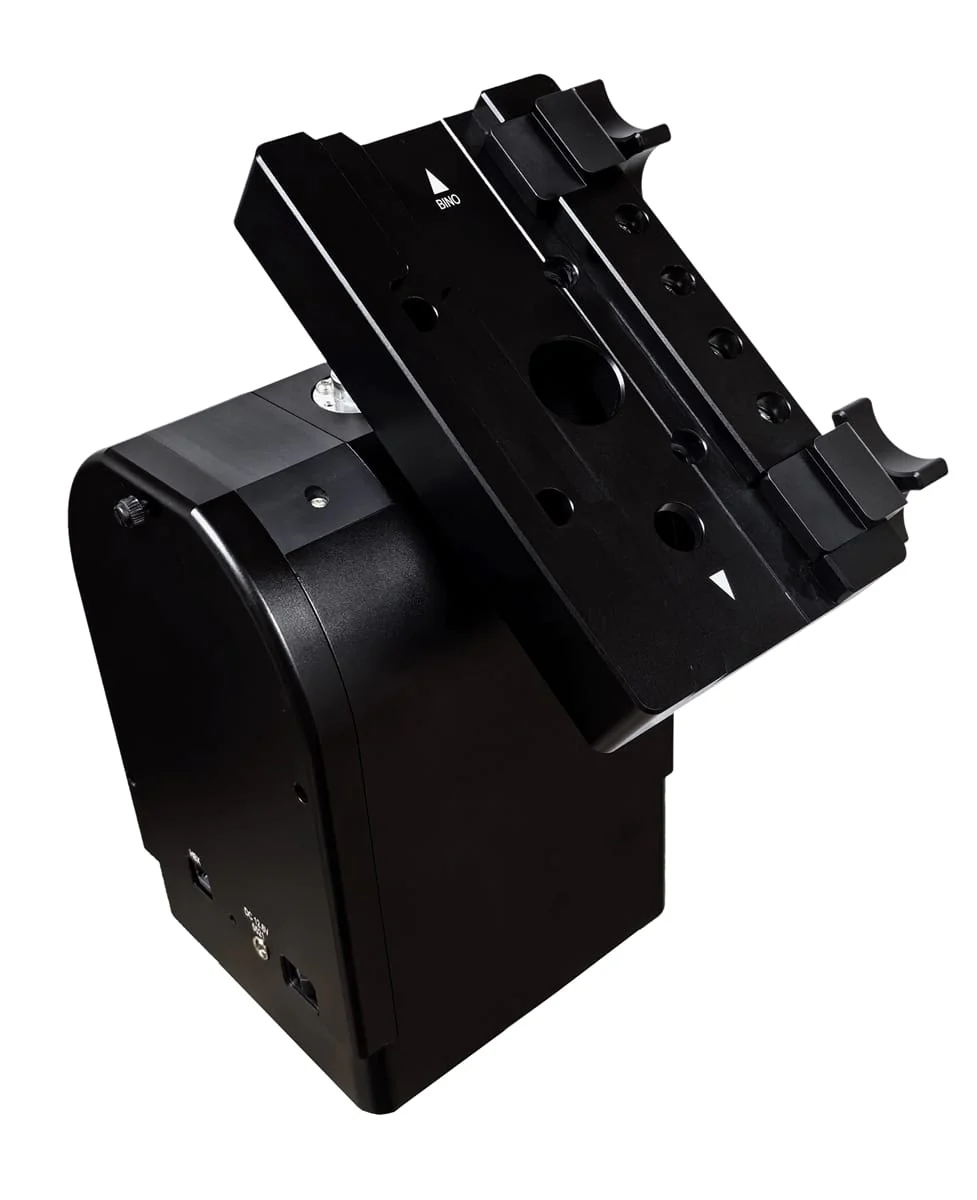

This relatively compact heavier payload mount will deliver an astronomy experience like never before. The mount easily accommodates both a binocular and a telescope through its multiposition saddle that can be located on a "top" or a"side" configuration to best suited for the instrument selected. Set-up is so easy, just turn the mount on and it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" routine.

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAZ71 delivers unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.

An HAZ71 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or an iOptron iMate Astronomy Control Box and other Pi device via INDI driver.

(Actual contents may differ from the image)

Features

• Advanced strain wave gear system technology
• Payload capacity of 31 kg (68 lbs) with the mount weight of 8.3 kg (18.3 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• Go2Nova® 8409 V2 hand controller with ~212,000 object database
• Built-in GPS
• Dual saddle (Vixen and Losmandy-D styles)
• Level & Go
• Large binocular mounting
• Satellite tracking ready (with third party software)
• Built in zero position search and locator
• Built-in Wi-Fi (via hand controller)
• USB port for firmware upgrade and computer control
• Internal Li-ion rechargeable battery
• Carrying case
• Two year warranty for mount, 90 day warranty for battery
• Optional LiteRoc tripod (#8023ACC) with #8043 MiniPier
• Optional Tri-pier (#8034) with #8043 MiniPier

Mount	Strain Wave Altazimuth Mount
RA gear system	Strain Wave Gear
DEC gear system	Strain Wave Gear
RA/DEC reduction ratio	800:1
Payload*	68 lbs (31 kg)
Mount weight	18.3 lbs (8.3 kg) with dovetail saddle
Payload/Mount weight	3.73
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodized black
Level indicator	Level bubble
Control system	GOTONOVA/Commander
Hand Controller	Go2Nova® 8409 with ~212,000 objects database
Tracking	Automatic
Maximum slew speed	6°/sec AZI, 3.6°/sec ALT
Power consumption	0.7A(Tracking), 1.7A(GOTO)
Battery	Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
Battery Charger	100-240V AC input /12.6V DC 2A output (5.5/2.1mm DC plug)
Power off brake	Electronic friction brake
GPS	Built-in
Wi-Fi	Built-in
Communication port	Yes (Wi-Fi and USB, via HC)
Firmware upgrade	Yes
Dovetail saddle	Vixen & Losmandy
Mounting base	3/8-16 threaded hole
Tripod or MiniPier	Optional
Operation temperature	-20ºC ~ 40ºC

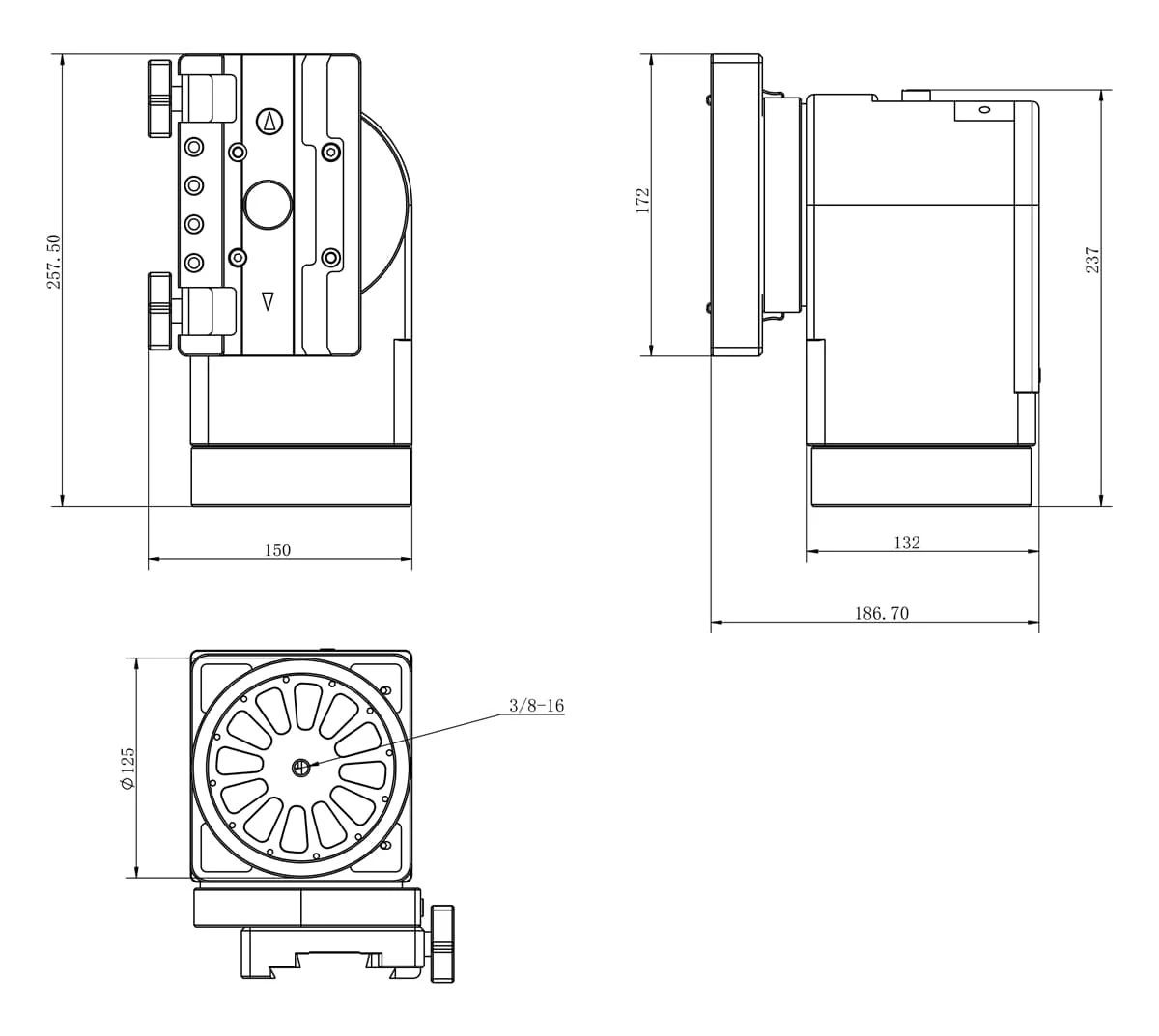

Gross weight and dimension	29 lbs, 17 x 15 x 9 in
Warranty	Two year limited (90 days for battery)
