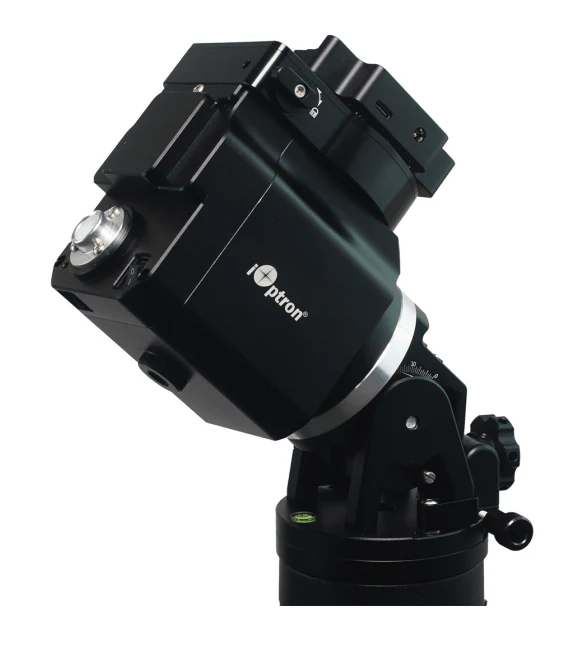

iOptron HAE16C Ultra Compact GoTo Dual AZ/EQ Hybrid Strain Wave Gear Drive Mount - HE162C
Features:
- Â Â Â Â Â Advanced strain wave drive technology
- Â Â Â Â Â Payload capacity of 18 lbs (~8.2 kg) with the mount weight of 5.7 lbs (2.6 kg). Maximum payload of 26.5lbs with an optional CW shaft and CW
- Â Â Â Â Â CNC machined
- Â Â Â Â Â Unique friction brake on RA axis to safely stop movement during a planned or unplanned power interruption
- Â Â Â Â Â 360 second gear period
- Â Â Â Â Â Vixen dovetail saddle
- Â Â Â Â Â Built in zero position search and locator
- Â Â Â Â Â Built-in Wi-Fi
- Â Â Â Â Â USB-C type ports for firmware upgrade and computer control (one on base and one on dovetail saddle)
- Â Â Â Â Â Support iOptron Commander, ASCOM and INDI
-      Optional Go2Nova® 8411 handset with OLED display
- Â Â Â Â Â iPolar electronic polar scope for easy and accurate polar alignment (optional)
- Â Â Â Â Â Soft carrying case
- Â Â Â Â Â Two year warranty
- Â Â Â Â Â Optional carbon fiber tripod #8061A
- Â Â Â Â Â Optional iGuiderTM autoguiding system #3360
- Â Â Â Â Â Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
- Â Â Â Â Â Optional MiniPier extension #8041
Specifications
|
Mount |
Hybrid EQ/AA Mount |
|
RA gear system |
StrainWave 14 |
|
DEC gear system |
Backlash-free worm/belt system |
|
RA reduction ratio |
360:1 |
|
Payload w/o CW* |
18 lbs (8.2kg) |
|
Mount weight |
5.7lbs (2.6kg) |
|
Payload/Mount weight |
3.17 |
|
Payload with CW |
26.5 lbs (12kg) |
|
Structure Material |
