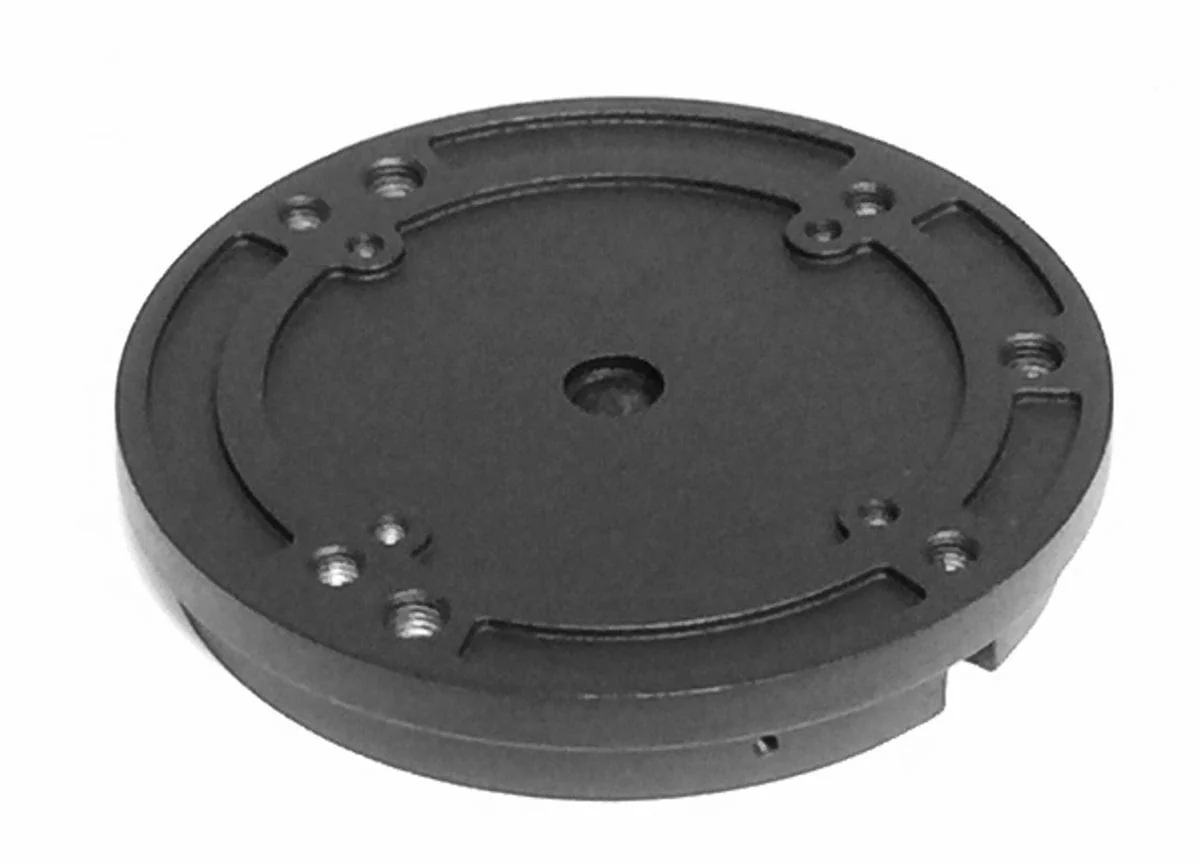

iOptron Pier Top Plate - 8032PT

6" (150mm) iOptron Pier Top flange plate for building your own pier or modifying your existing tripod/pier.

Click HERE for the Pier Top CAD drawing.

Features

The Pier Top can be used to mount the following mounts (with appropriate mounting accessories):

• CEM60 & CEM70/GEM45*/CEM40*/HEM44*/HAE43* (w/ center post)
• iEQ30* & iEQ30-Pro*/iEQ45/iEQ45-Pro (w/ center post and alignment peg)
• AZ Mount Pro & MiniTower/MiniTower II/MiniTower Pro (w/ a center T-bolt)

* Due to small footprint of the mount base, the low-latitude operation may be affected.

Please select the accessories from the drop down option menu to add the needed for your mount. If you already have the accessory, just order the plate itself.



Specifications

• Plate diameter: 6" (150mm)
• Three (3) M10 threaded through holes for MT/MT2/MTP and AZ Mount Pro
• Four (4) M8 threaded through holes for CEM60/CEM60-EC, or iEQ45/iEQ45 Pro
• Four (4) M6 threaded through holes for CEM40/GEM45/HAE43/HEM44/iEQ30/iEQ30 Pro.
