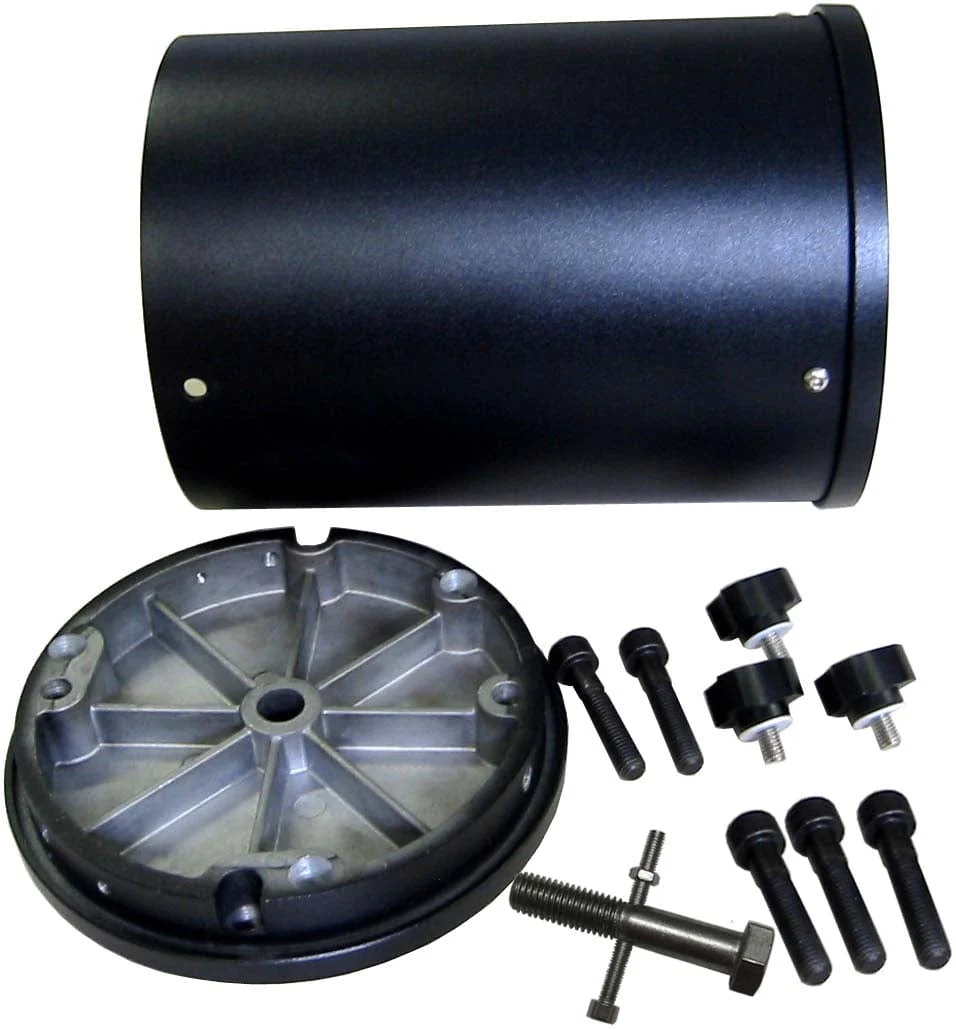

iOptron Mini Pier - 8032

iOptron® MiniPier is designed for iOptron GoTo mounts to provide 8" extra telescope height. The MiniPier fits on various iOptron tripods/piers, as well other brand tripod with some DIY.

The MiniPier fits these iOptron tripod/pier

• LiteRoc Tripod for AZ Mount Pro, CEM60/70
• MiniTower 1.5" Tripod
• MiniTower 2" Tripod
• AZ Mount Pro Tripod
• iEQ45/CEM60 Tripod
• Tri-Pier (#8034)
• DO NOT fit on iEQ30 Tripod

The following mounts can be mounted onto the MiniPier:

• CEM70
• CEM60
• CEM40/GEM45 (won't fit on CEM40/GEM45 tripod, may limit low latitude application)
• iEQ45/iEQ45 Pro
• iEQ30/iEQ30 Pro (won't fit on iEQ30 tripod, may limit low latitude application)
• AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro
• Other mount with #8036 adapter

Manual

Assembly Instruction
Pier Top Plate Drawing

Specifications

Pier Diameter	Ø5.7" (Ø144 mm) with 150mm top plate
Height	8" (200 mm)
