iOptron CW 2.5kg for iEQ45/CEM60/Etc - 8027-05

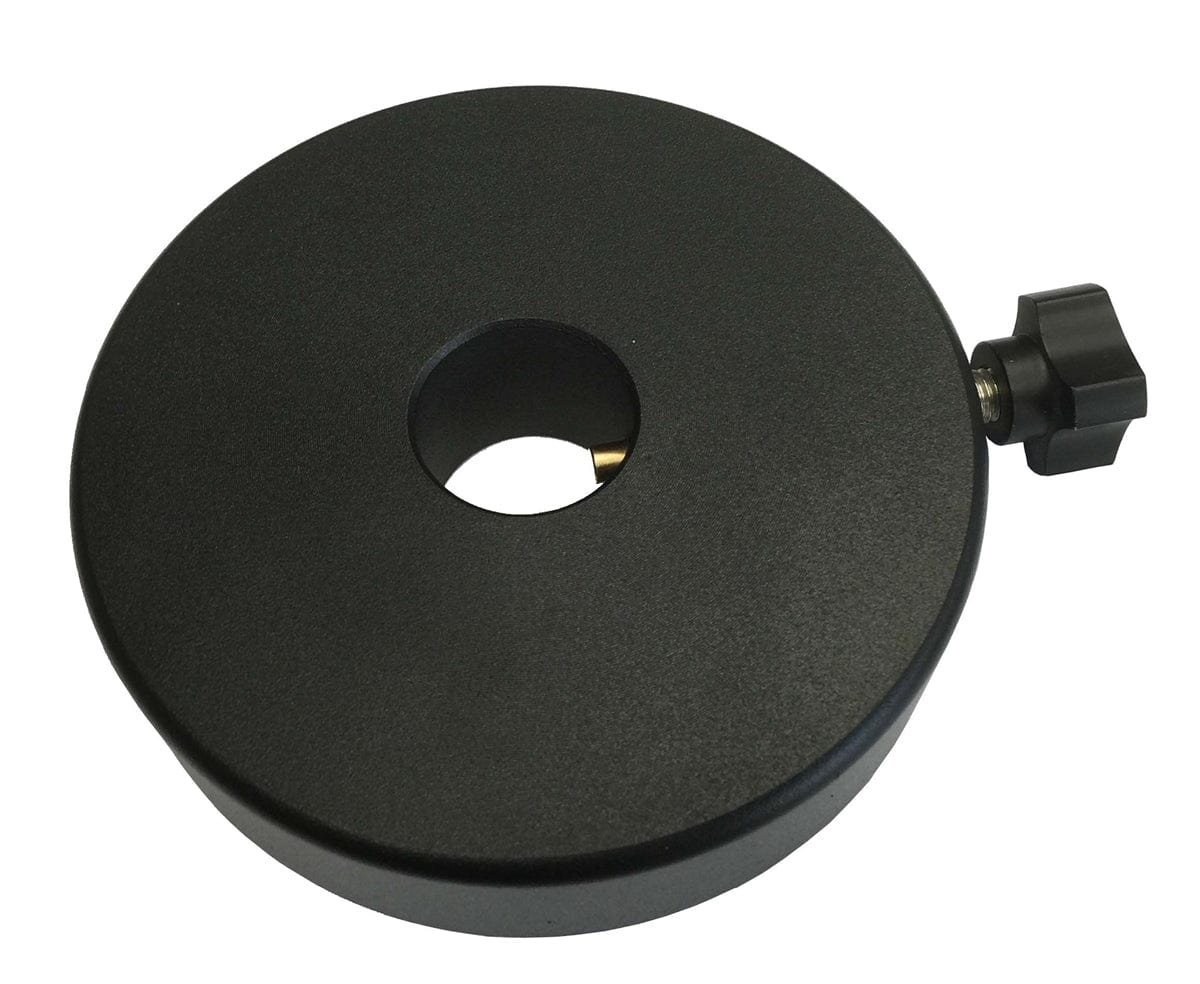

This 2.5 kg (5.5lb) counterweight is designed for following iOptron mount:

• CEM70/CEM70EC/CEM70G
• CEM60/CEM60EC
• GEM45/GEM45EC/GEM40G
• CEM40/CEM40EC/CEM40G* (for late version with 28mm CW shaft)
• iEQ45 Pro
• iEQ45

* Check your CEM40 mount CW shaft diameter before ordering.

It can be used for other mount with a 28mm diameter counterweight shaft.

Specifications

Weight:	2.5 kg (5.5 lbs.)
Outer diameter:	118 mm (4.6 in.)
Inner diameter:	28.5 mm (1.12 in.)
Height:	25 mm (1 in.)
Locking mechanism:	Locking screw with pin
Locking screw thread size:	M8

Actual dimension, except inner diameter, may be different.
