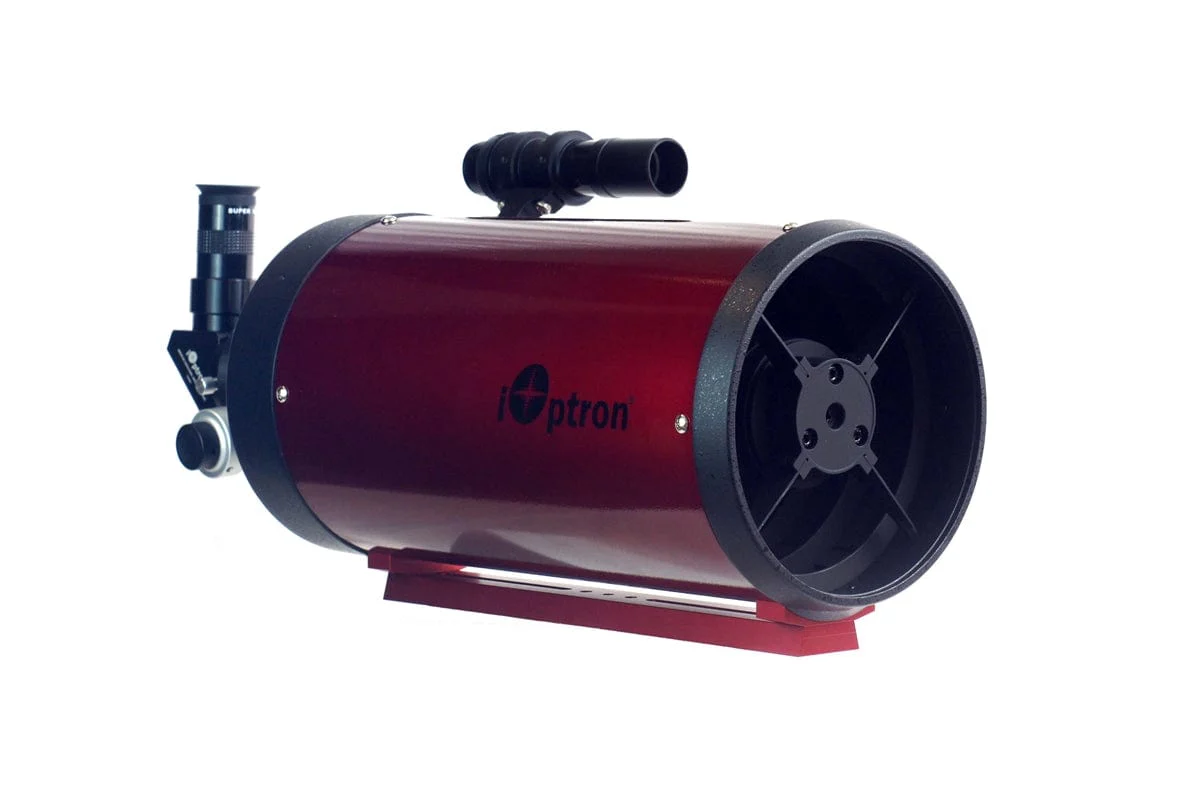

iOptron OTA 6" F/9 Ritchey-Chrétien - 6111
Please Note: A finder scope, diagonal and eyepiece are not included in the OTA package and must be purchased separately if desired.
The iOptron® Photron™ Ritchey-Chrétien design telescopes feature low thermal expansion quartz primary and secondary mirrors with ninety-nine percent reflective dielectric coatings. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color or monochrome imaging. A fixed position primary mirror eliminates image shift that occurs from focusing with other telescope designs. The iOptron RC6 comes with a 2" dual-speed Crayford focuser. Three focuser extension rings are provided for a "flex-free" solid extension as a means to take up any unneeded back focus. Its steel tube is equipped with knife edge baffles to diminish contrast reducing stray light, improving the instrument in both visual and imaging uses. A RC6 model comes with a Vixen style dovetail plates.
Manuals:
Photron RC telescope operation manual
Electric focuser installation and operation manual
Specifications
| Optical Design | Ritchey-Chretien |
| Clear Aperture | 150mm |
| Focal Length | 1370mm |
| Focal Ratio | f/9 |
| Resolving Power | 0.76 arc seconds |
| Limiting Magnitude | 13.6 |
| Highest Useful Magnification | 180X |
| Secondary Mirror Size | 67mm |
| Focuser | 10:1 Crayford dual-speed |
| Focuser size | 2" |
| Dovetail Bar | Vixen-style |
| Finder scope Base | Yes |
| Finder scope | Optional |
| Tube material | Steel |
| Tube Length | 19.1" |
| Tube Weight | 12 lbs |
| Other Accessories | 2" to 1.25" compression ring adapter; 1" long extension tube X2 2" long extension tube X1 |
| Gross Weight | 18 lbs |
| Warranty | One year limited |
