Baader Diamond Steeltrack 2" Focuser for SCT/HD Telescopes, 30mm Travel, incl Adapter for 3.3" & 2" SC/HD Threads - 2957220

Highlights

• Baader Diamond Steeltrack® (BDS-SC) for Schmidt-Cassegrains (EdgeHD) with 30 mm focus travel
• Minimum height (as supplied – incl. 2" clamp): 93 mm
• Minimum height (with optional S58 direct-thread adapters): 80 mm
• Focuser weight (as supplied – incl. 2" Klemme): 1.040 g (36.7 oz)
• Includes 2" and 3.3" adapter to fit all C14/C11/C9¼/C8/C6/ OTA's

General Specifications for all Baader Diamond Steeltrack^® (BDS) focusers:

Drive system

• True diamonds form a micro-geared high precision drive system never accomplished before
• In comparison to conventional Crayford or rack & pinion drives, this micro-geared movement has zero backlash, zero cogging, and zero flexure
• Diamond Steeltrack® 2" focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive bearing preload (bearing preload can be increased further if necessary)
• Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings - handles higher loads with greater rigidity and accuracy. No Teflon-pads anywhere
• 1:10 Stainless Steel fine-focus mechanism, ready for attachment of the optional Diamond Steeldrive temperature-compensating motor drive system
• Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching the Diamond Steeldrive motor block
• Shortest possible mechanical design achieves optimum balance between focuser height (Back focus) and rigidity requirements
• Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment

Multiple Adapters available for shortest possible connection to most cameras / eyepieces

Mounting of BDS-Adapters on the example of BDS-NT Diamond Steeltrack®

Clamping system

• S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 direct-thread adapters to enable direct thread connection of accessories and cameras without 2" clamp
• 2" eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ½") included as standard
• Optionally available 2" Baader Click-lock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8")
• Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated field flatteners or focal reducers/correctors

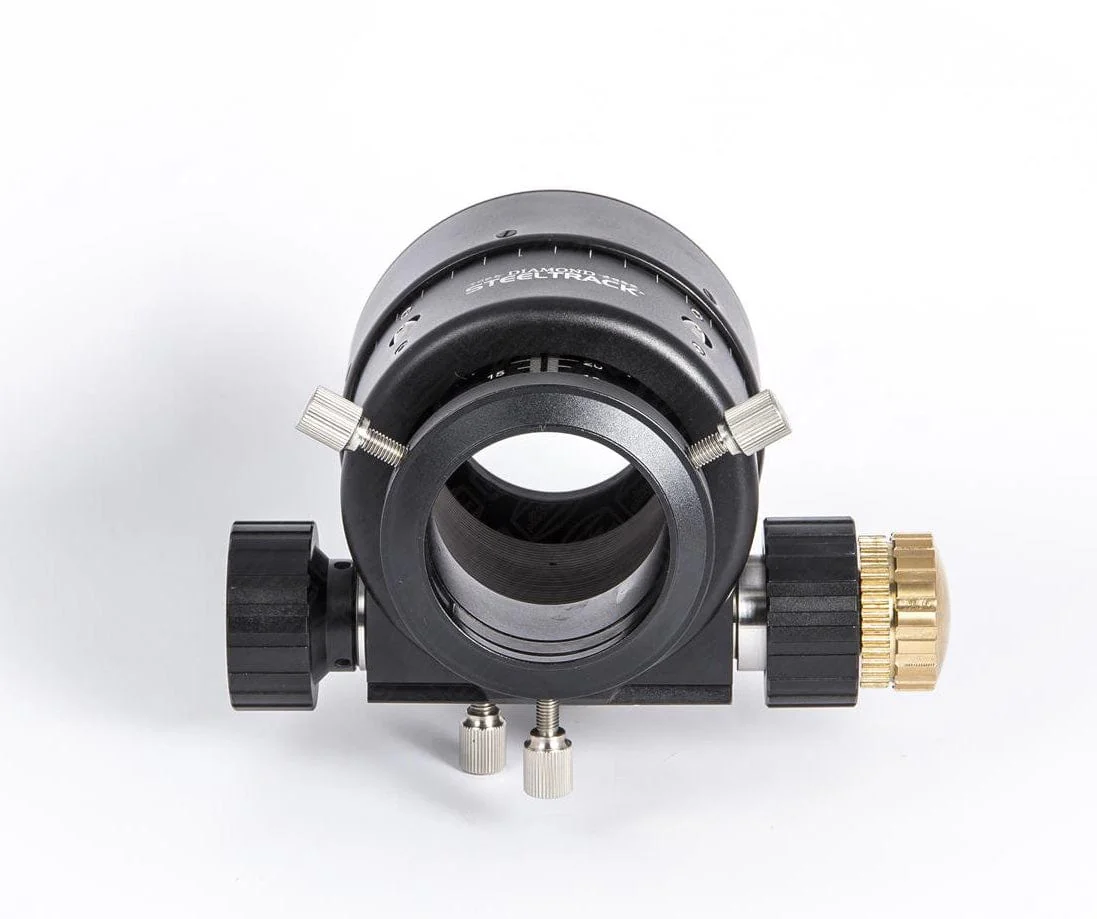

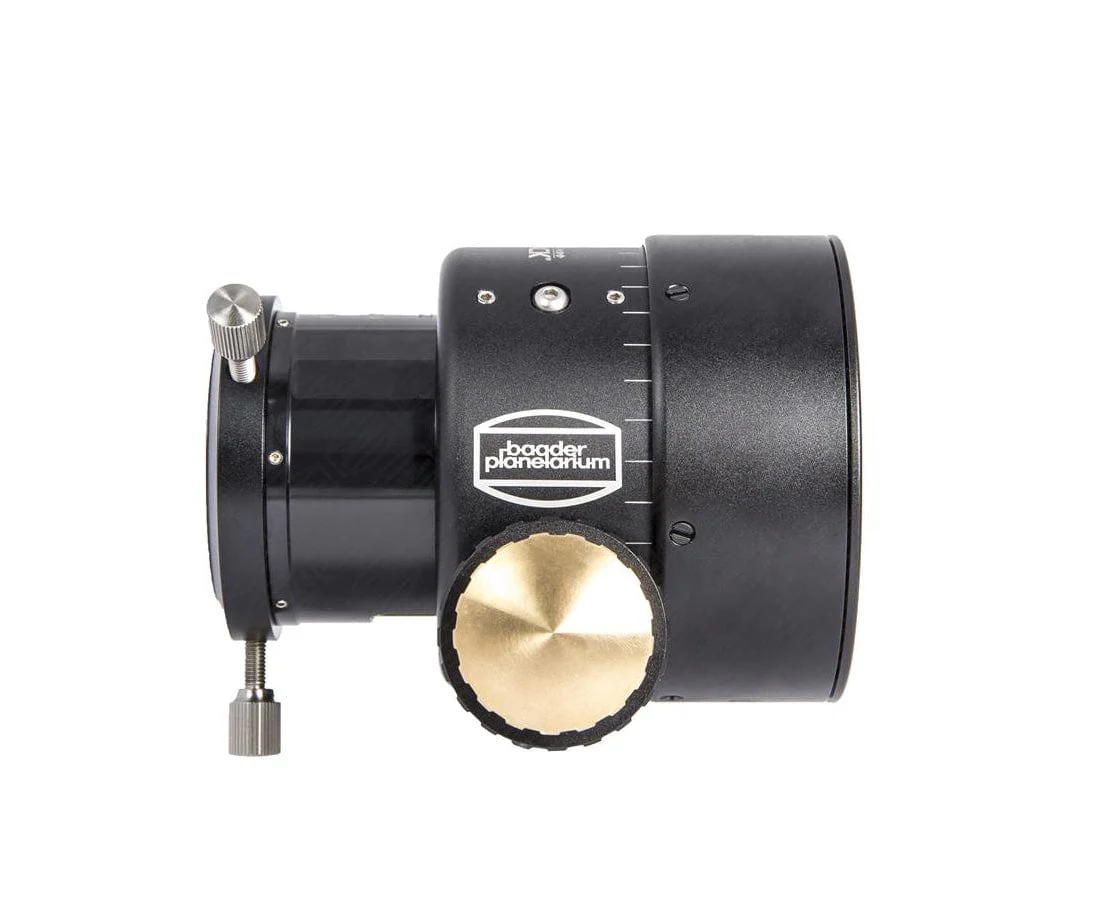

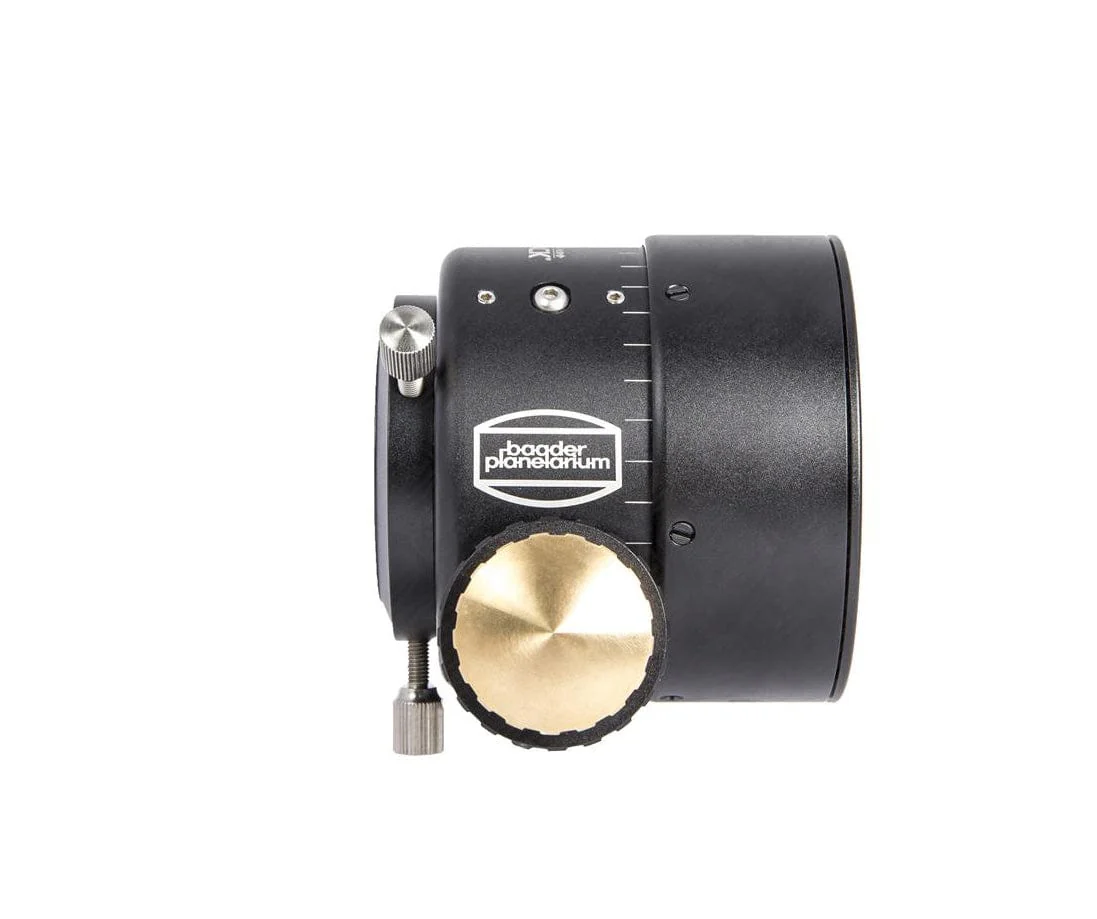

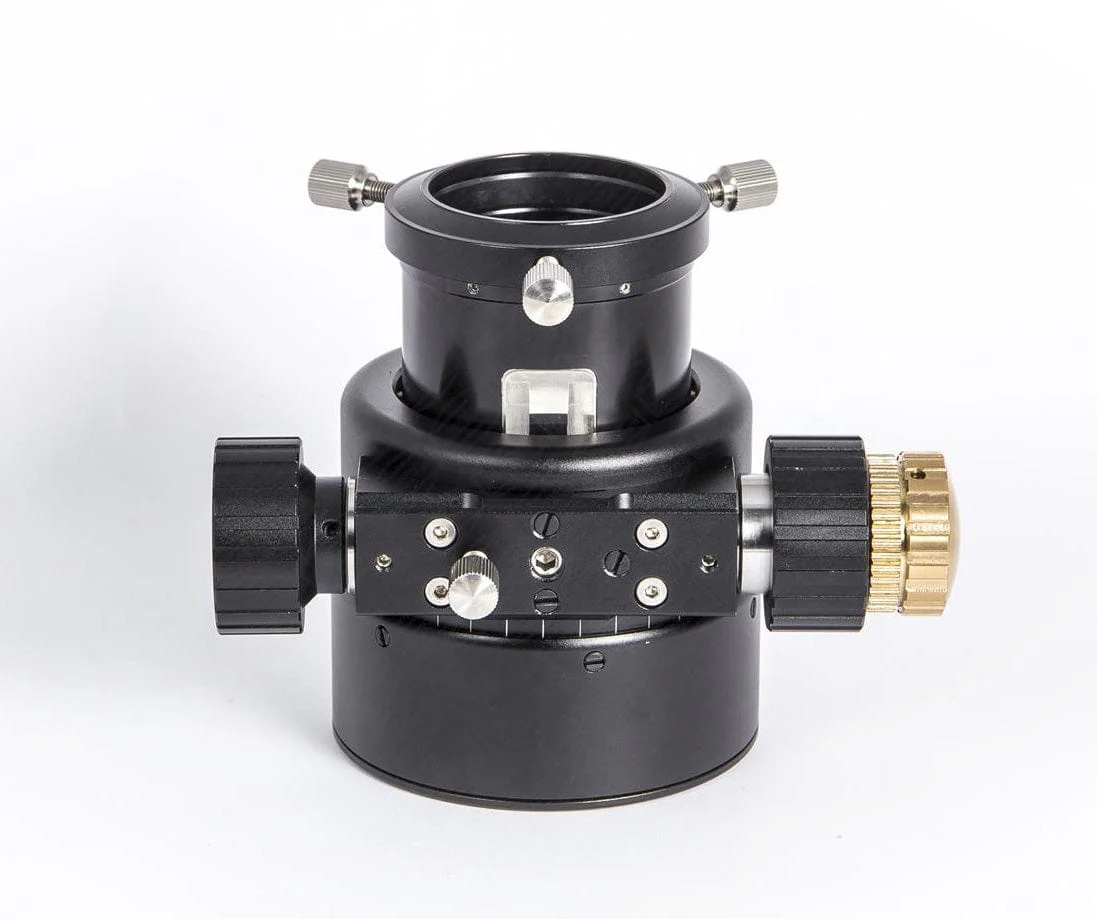

BDS-SC: all views

Imaging / eyepiece projection on the example of BDS-RT Diamond Steeltrack

Focusing Drawtube:

• Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
• Ultra-hard subzero coated bearing races – precision milled and much harder than anodizing or stainless steel
• Oversized 55mm inner clear diameter, to prevent vignetting, with anti-reflection knife-edge baffles
