Baader Prism Diagonal T2/90 32mm Maxbright - 2456005
Highlights
- Zenith Prisma T-2/90 ° with 32mm Prism
- Connection objective side: T-2 internal thread
- Connection eyepiece: T-2 external thread

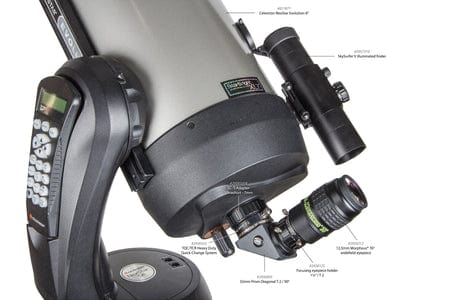

- Excellent for Baader Maxbright binoviewer
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2456005 |
| Net weight (kg) | 0.13 |
| Optical Design | Star Diagonal Prism |
| Inner Connection (lens sided) | Thread, T-2 (M42 x 0,75) |
| Outer Connection (eyepiece/-camera-sided) | Thread, T-2 (M42 x 0,75) |
| Reflection surface | Total reflection |
| Glass path | 32 mm |
| AR-Coating | High transmission multi-coated (HT-MC) |
| Image Orientation | Erect image, Mirror inverted |
| Optical length (mm) | 35 |
| Clamping System | no clamp |
| Deflection angle | 90° |
| Inner Diameter / Clear Aperture (mm) | 32 |
$30.06
Original: $85.89
-65%Baader Prism Diagonal T2/90 32mm Maxbright - 2456005—
$85.89
$30.06Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Highlights
- Zenith Prisma T-2/90 ° with 32mm Prism
- Connection objective side: T-2 internal thread
- Connection eyepiece: T-2 external thread
- Excellent for Baader Maxbright binoviewer
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2456005 |
| Net weight (kg) | 0.13 |
| Optical Design | Star Diagonal Prism |
| Inner Connection (lens sided) | Thread, T-2 (M42 x 0,75) |
| Outer Connection (eyepiece/-camera-sided) | Thread, T-2 (M42 x 0,75) |
| Reflection surface | Total reflection |
| Glass path | 32 mm |
| AR-Coating | High transmission multi-coated (HT-MC) |
| Image Orientation | Erect image, Mirror inverted |
| Optical length (mm) | 35 |
| Clamping System | no clamp |
| Deflection angle | 90° |
| Inner Diameter / Clear Aperture (mm) | 32 |
