Baader 2"a / M44i x 1 Zero-Length Reducing Piece (Zero Optical Length) - 2454835
Highlights
- Converts any 2" (SC) female thread into a M44 x 1 female thread - without extending the optical length

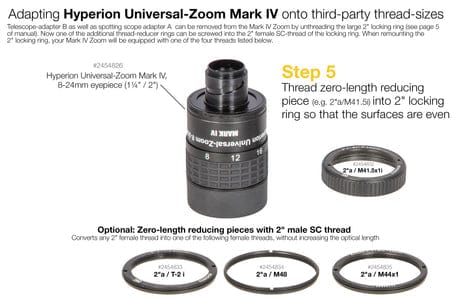

- Manufactured to adapt our Hyperion Universal Zoom Mark IV onto most spotting scopes (see animation on the right)
- Note: for fitting the optical nose of the Zoom into the receptor at some spotting scopes, the thin dust cover ring needs to be removed - see images
- Suitable for adaptation to Leica spotting scope with male M44 x 1 connection thread. Also suitable for all M44x1 threads according to the old Zeiss (Jena) standard.
- Adapter with continuous 2" male and M44 x 1 female thread as well as two face holes (recommended mounting accessory:Â adjustable pin-type face wrench #2450062)
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2454835 |
| Inner Diameter / Clear Aperture (mm) | 43 |
| Outer Diameter | 50,8mm (2" SC) |
| Inner Connection (lens sided) | Thread, M44 |
| Outer Connection (lens sided) | Thread, 2" (50,8mm) |
| Inner Connection (eyepiece/-camera-sided) | Thread, M44 |
| Outer Connection (eyepiece/-camera-sided) | Thread, 2" (50,8mm) |
| Type of Adapter | Reducing piece |
