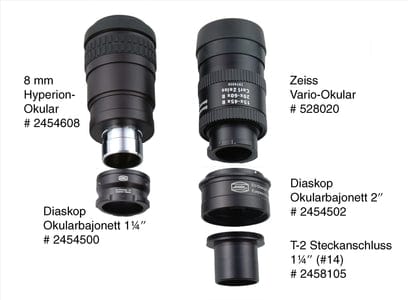

Baader Diascope Bayonet 1.25" Ocular Adapter (to fit normal 1.25" eyepieces onto Zeiss Spotting Scopes) - 2454500

• Bayonet adapter to fit suitable 1¼" astro-eyepieces onto all Carl Zeiss Diascope Fluorite spotting scopes
• includes Allen Wrench key and two O-rings to adjust stiffness when switching eyepieces



For astronomical use, you need a fast eyepiece change, without changing the orientation of the Diascope. We therefore provide the eyepiece adapter without a mounted sealing ring, so that the eyepieces can be switched easily. The bayonet has got an undercut, which serves to receive one of the two supplied O-rings. If you prefer a sealing ring, you can adjust the stiffness when switching eyepieces between tight (large O-ring) and light (small Oring) with these two different rings. The image shows the undercut to place the O-Rings

For more Information see the tab "Downloads"

Specifications

Manufacturer	Baader Planetarium
SKU (#)	2454500
EAN Code	4047825011541
Weight (kg)	0.04
Optical length (mm)	24
Clamping System	Screw clamps
Inner Diameter / Clear Aperture (mm)	31,75 mm
Outer Diameter	41 mm
Outer Connection (lens sided)	Bayonet
Inner Connection (eyepiece/-camera-sided)	Clamp, 1¼"
Adaptable to	Zeiss Fluorite-Diascope
Compatible Brands	Zeiss, Mixed
Type of Adapter	Changer Adapter, Eyepiece Clamp
