Two exciting new Alt-Az strain wave mounts, HAZ31 and HAZ46, are added into iOptron strain wave gear mount family!

This light weight, compact, medium payload HAZ31 mount will deliver an astronomy experience like never before. With a mount head weighing in at 8.2 lbs, HAZ31 has a payload capability 31 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments that flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely sets up the HAZ31 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" technology.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAZ31 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A HAZ31 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

(Actual contents may differ from the image)

Features

Advanced strain wave gear system technology
Payload capacity of 20 kg (44 lbs) with the mount weight of 5.6 kg (12.3 lbs, include dovetail saddle)
CNC machined
Unique friction brake to safely stop movement during a planned or unplanned power interruption
Go2Nova® hand controller with ~212,000 object database
Dual saddle (Vixen and Losmandy-D styles)
Level & Go
Large binocular mounting
Satellite tracking ready (with third party software)
Built in zero position search and locator
Power down position and location memory
Built-in Wi-Fi (via hand controller)
USB port for firmware upgrade and computer control
Carrying case
Two year warranty

Specifications

HAZ46

Mount	Strain Wave Altazimuth Mount
RA gear system	Strain Wave Gear
DEC gear system	Strain Wave Gear
RA/DEC reduction ratio	800:1 (SWG 160:1, Sync belt 5:1)
Payload*	44 lbs (20 kg)
Mount weight	12.3 lbs (5.6 kg) with dovetail saddle
Payload/Mount weight	3.57
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodized black
Level indicator	Level bubble
Control system	GOTONOVA/Commander
Hand Controller	Go2Nova® 8409 with ~212,000 objects database
Tracking	Automatic
Maximum slew speed	6º/sec
Power consumption	0.7A(Tracking), 1.2A(GoTo)
Power	DC12V-5A (5.5/2.5mm DC plug), optional internal Li-ion battery
AC adapter	100V ~ 240V (included, indoor use only)
Power off brake	Electronic friction brake
Power-down memory	Yes
Wi-Fi	Built-in
Communication port	Yes (Wi-Fi and USB, via HC)
Firmware upgrade	Yes
Dovetail saddle	Vixen & Losmandy
Tripod	Optional
Operation temperature	-20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty	Two year limited

Price

Collections

Harmonic Drive Telescope Mounts

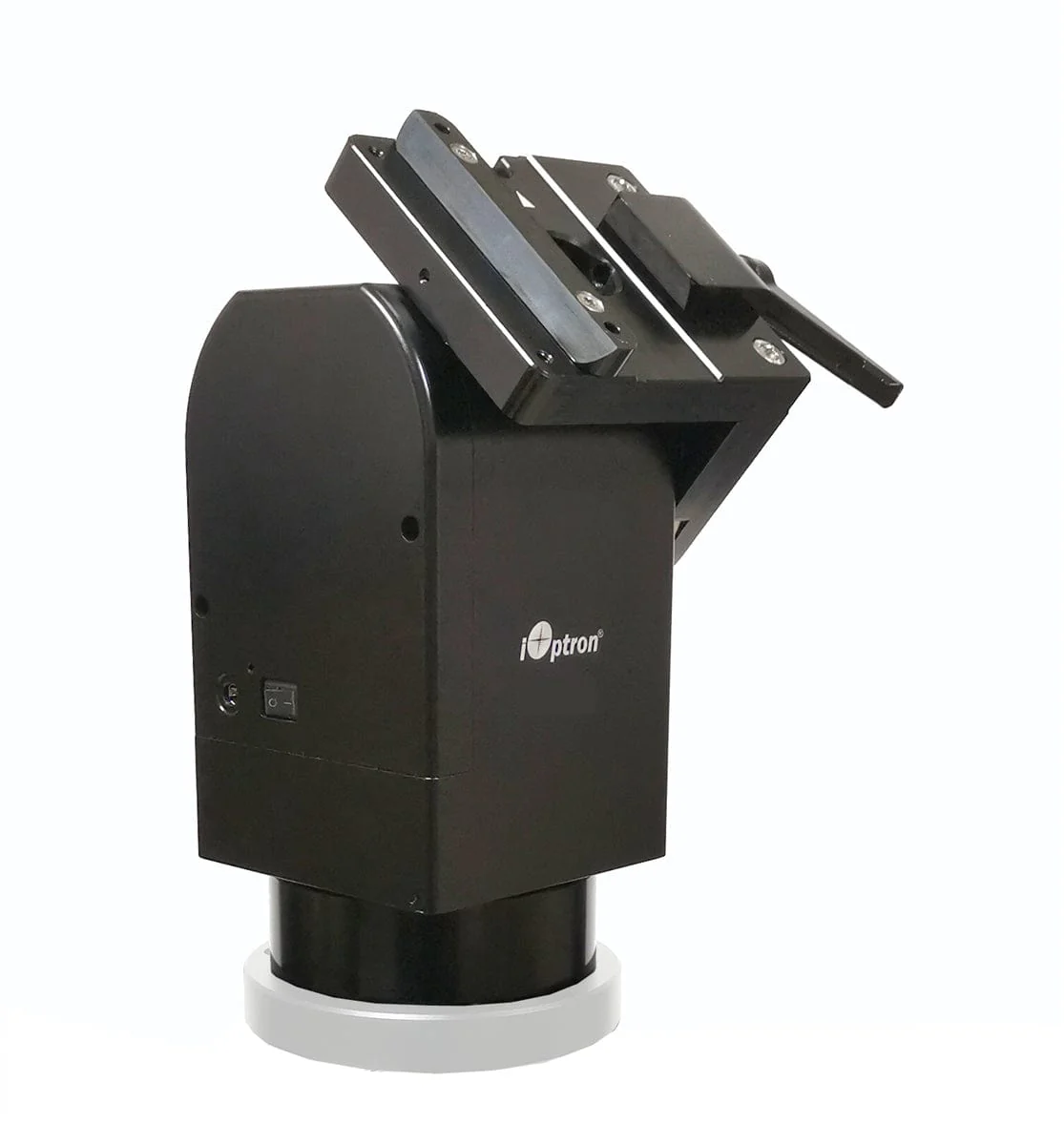

iOptron HAZ46 Alt-Az Strain Wave Mount

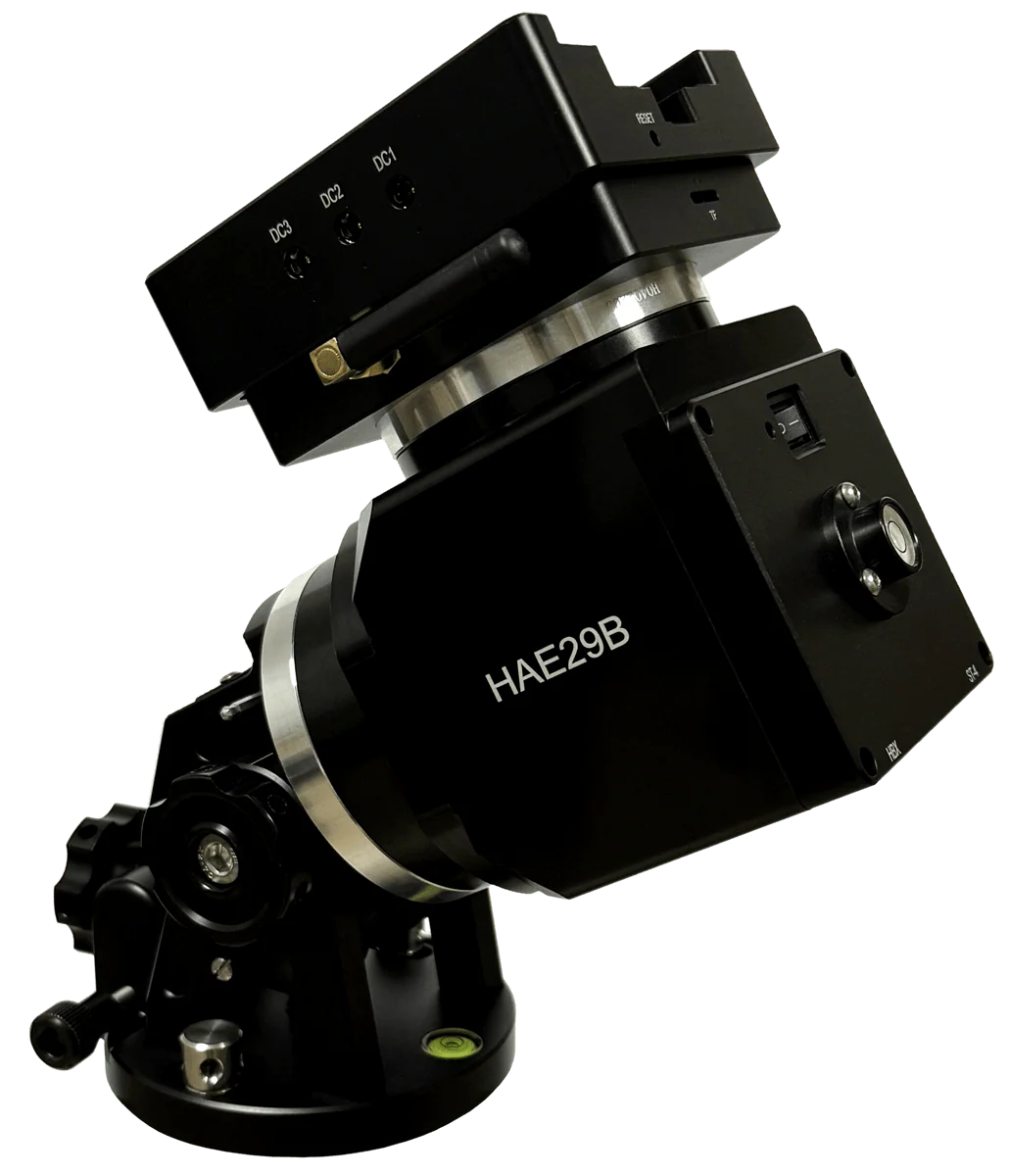

iOptron HAE29B AZ/EQ dual SWG w/ iMate - HE292B

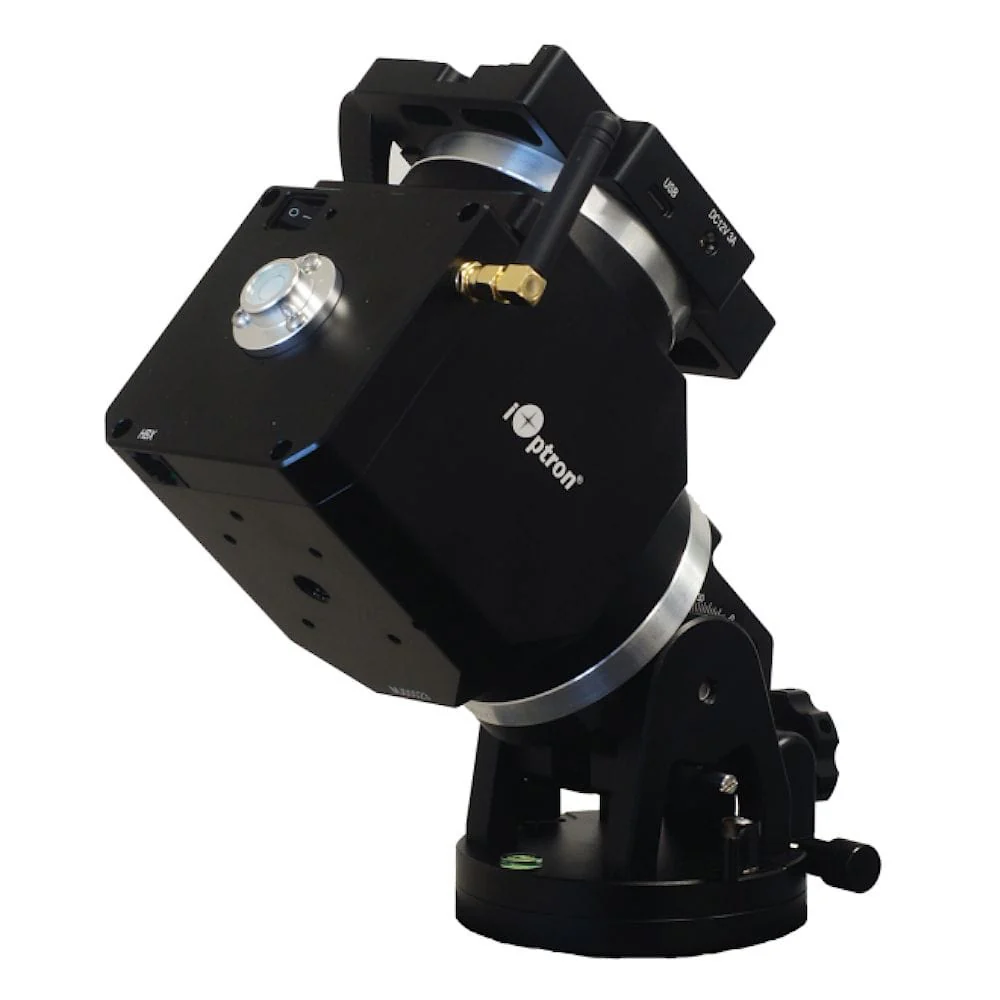

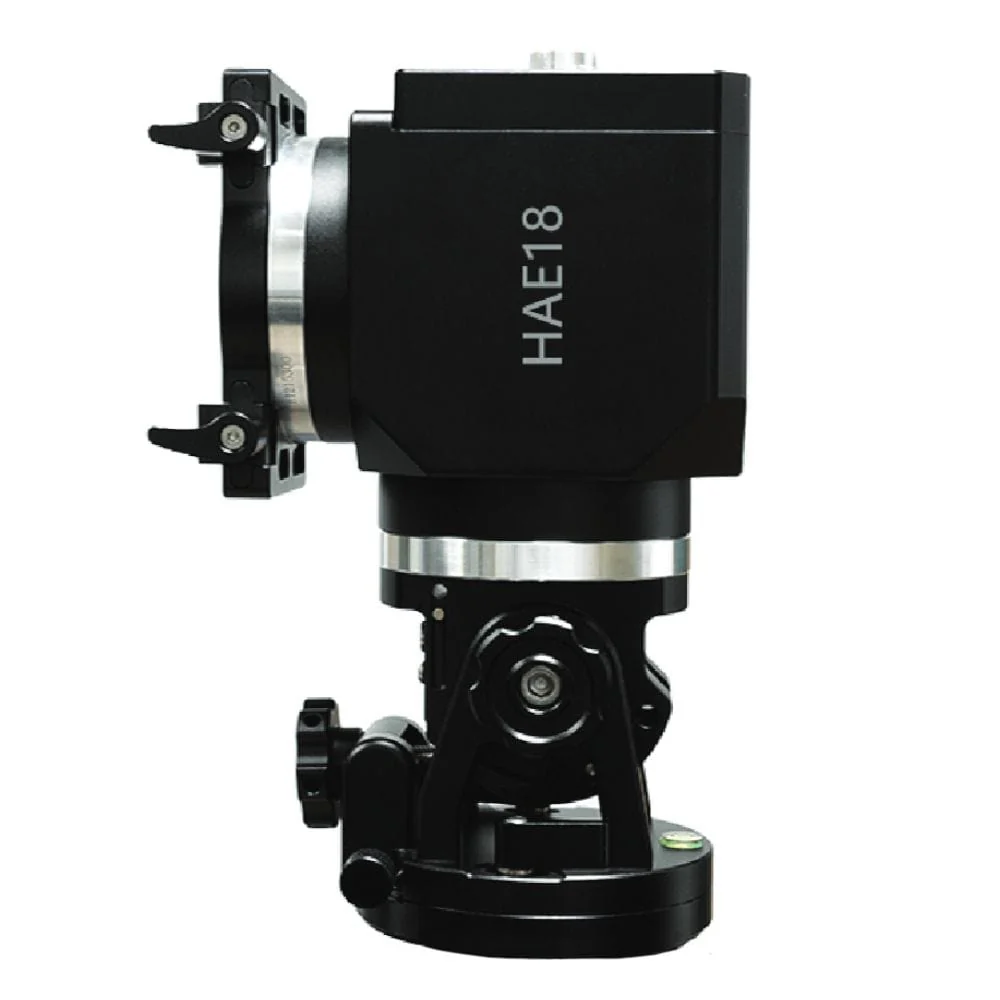

iOptron HAE18C Ultra Compact GoTo Dual AZ/EQ Hybrid Strain Wave Gear Drive Mount - HE182C
